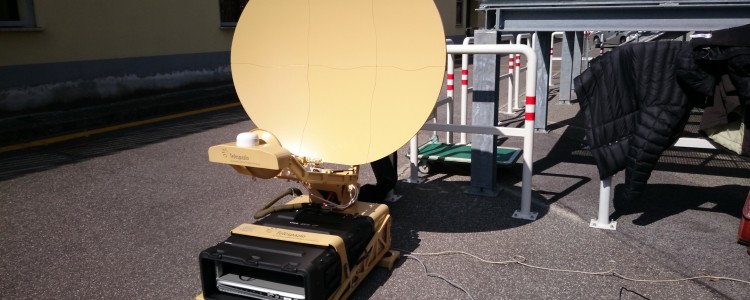

CommuniPack 2300 – Fully Automatic System

ACU Graphic User Interface

ACU Graphic User Interface

datasheet CommuniPack2300

Performances:

  • Compliants IP67, MILSPEC4150J, STANAG4280, ATA300, IATA.
  • color: Black, Desert, Red
  • Tri band terminal: X, Ku  and Ka Band,
  • Carbon Fiber Reflector
  • 3 Rack Units for the the user equipment

Main Antenna Pack:

  • Elevation over Azimuth Platform,
  • Fully automatic system,
  • Carbon Fiber Main Reflector,
  • Dismountable main reflector,
  • Stabilizers,
  • ACUmini built-in
  • digital Beacon Receiver built-in
  • Sensors:
    • GPS
    • Trim sensors
    • Fluxgate
  • ACU 3 Button operability,
  • ACU Gui Client (Software)
  • n.3 Rack Units 19″

Ka Band Performances.

Trolley Aux:

  • Antenna reflector parts,
  • Mechanical Chassis
  • Documentation

OPERATIONAL CONDITIONS:

  • Operational Temperature -20°C to +45° C
  • Operational Humidity 90% non-condensing
  • Operational Wind Speed Max 12 m/s,
  • Operational Altitude Max 3,000 m (9,850 ft)
  • Rainfall Max 90 mm rain per hour
  • Storage Temperature -40°C to +70°C (-40°F to +158°F)
  • Sealing Class IP65, including Power Supply Unit
  • Deployment and Set-up 5 < 10 minutes
  • Standard IP65
