Suitable for:

  • BroadCasting of news or social events, as cultural, sports, commercial;
  • Remote learning;
  • Services of sanitary emergency;
  • Civil safeguard;
  • Law and order;
  • Connectivity increase;
  • Far data acquisition, telesurveillance, monitoring;
  • Bidirectional telephone connections;
  • Travelling sites;
  • Semifixed sites;

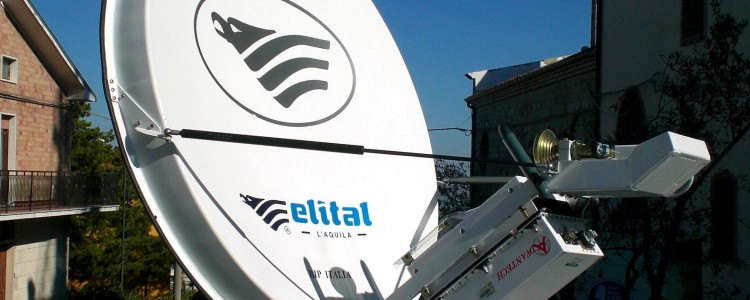

The SNG10 system is based on ACU-Pro pointing device. the main features are:

  • ACU Pro – Antenna Control Unit Pro version.
  • High Reliability (stats: 99.75% based on 20 systems in last 5 years),
  • BUC  management capability,
  • Magnetic Declination world map bultin.
  • Advanced Graphic user interface,
  • Air Cargo compliant,
  • Brushless motor,
  • Absolute encoders,
  • IP Remotization (with ACU client),
  • Trim sensors (Pitch, Roll, Heading)
  • GPS Built-in,
  • Aluminiun frame,
  • 140mm diameter for cable wrap,
  • motorized Feed option,
  • Azimuth range 380°,
  • Elevazione range -5
  • Offset Reflector,
  • Offset angle 22°,
  • Horizontal Dimension 1,2m,
  • Vertical Dimension 1.3m,
  • OMT – 2 Port (3 port available),

Ku-Band:

  • Antenna Gain 42dB
  • Noise Temperature 53°K @ 30° El
  • Cross Polarization >35dB

K-Band (18-22GHz):

  • Antenna Gain 47dB (@21GHz)
  • Noise Temperature 53°K @ 30° El
  • Cross Polarization >35dB

The system is dedicated to mil grade services on off road vehicles for institutional customers.

Documents:
Dimensions
(The document may change)

Improvements:

  • VoIP channels
  • ADSL Internet band allocation
  • E-mail service with server on board (optional mail relay)
  • Transfer of files or multimedial contents (videoconference)
  • Transfer of high quantity of data towards fixed network
  • Recovery or increase of GSM/GPRS connections with inner radio link(optional)
