EGSE – Building Block

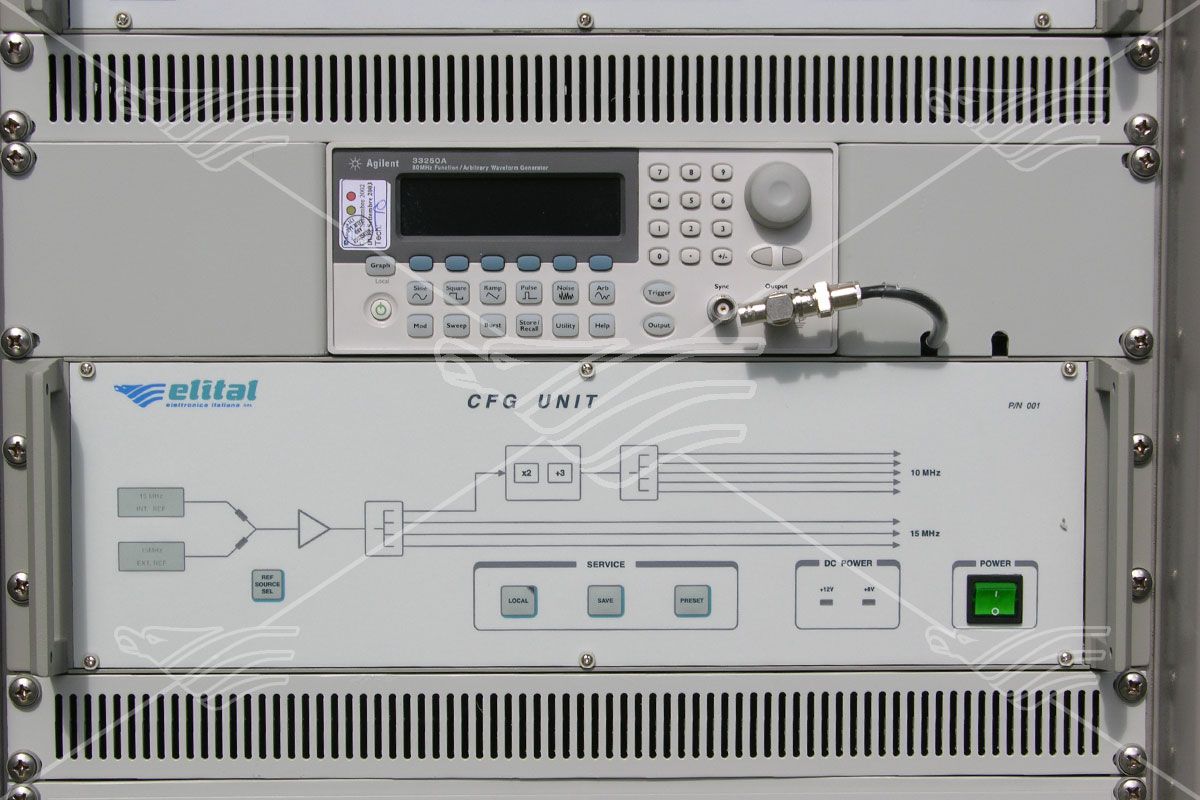

EGSE – Radio Frequency Test Equipments

Design and Development of Radio Frequency EGSE for signal acquisition, testing and validating of equipment for satellite application.

Main features:

• Specially design equipment,

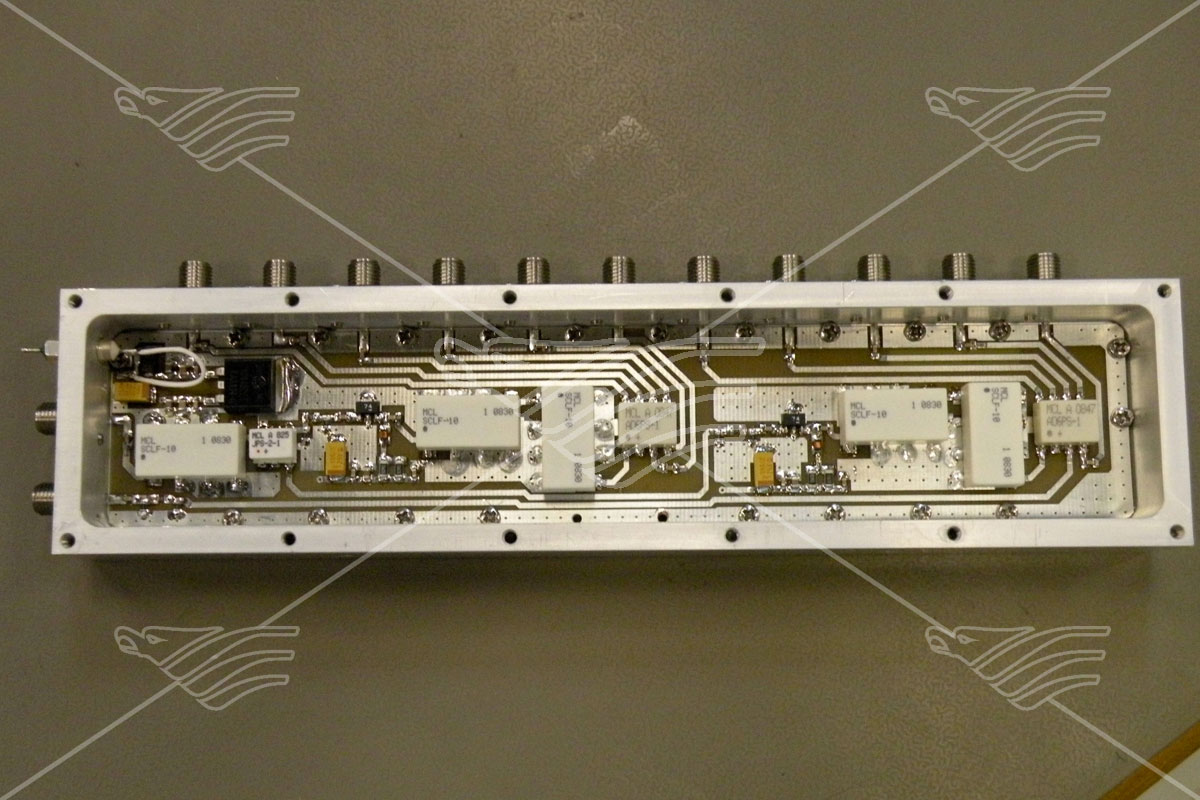

• RF matrix
• signal and power matrix,
• RF Front Ends,
• Stand alone or remote controlled
• Integrated with Room Equipment software (EDEN),

Programs:

• Amos4
• Sicral 1B
• KazaSat
• YahSat
• COSMO SkyMed
• SAR2000
• Sicral 1
• Rosetta
• Artemis
• ERS
• ItalSAT
• Metop
• Olympus

EGSE – Battery Condition Unit (BCE or BCUTE)

Battery Condition Equipment (BCE or BCUTE)

This equipment is designed to simulate the operations during the operative lifetime of the satellite. The BCE can Charge and Discharge the battery, control the thermal chamber and controls the parameters to avoid damage.

The Main module of the BCE is the Elital CDU (charge Discharge Unit) rack module, that is in charge of connect, and control with own protection circuit, the battery with the instruments of the BCE on each operation.

Main function of CDU module are:

Charging Operation;
Discharging Operation;
Single cell discharge and controls,
Thermistors control,
Heaters control,
Safety Loop
An OVP module;
An OIP module;
An WDG module;
An IPP module;
Datasheet

EGSE – Umbilical SCOE

The Umbilical Test Equipment  provides the following main functions for satellite testing:

1. Power supply to S/C buses,
2. Charging and mainteining of on-board batteries,
3. TM and TC signals processing,
4. Event record and simulation,
5. Measuring and acquisition of signals came from the S/C
6. Event creation to S/C
7. The safety Unit, to cut off the connection between the Umbilical and the Spacecraft.

The Equipment is controlled locally by the windows PC and it’s remote connected to be drived by the OCOE.

The main functions of the Automatic Test Equipment (ATE) are controlled by the local Windows  PC srver type hardware and integrated into the standard Rack. All the instrument are controlled by the local PC through own communication bus.

The main functions of the Umbilical SCOE are:

• Adapt S/C umbilical connectors and distribute signal lines,
• Handle and route TM/TC signals trough umbilical lines (N&R)
• Provide signal test point intarface panel,
• Monitor and display signals from S/C,
• Provide external power for S/C operation via umbilical plug,
• Power supply regulation (trough hte Bus Voltage from the S/C) and voltage compensation at S/C interface connector,
• Provide Battery conditioning function

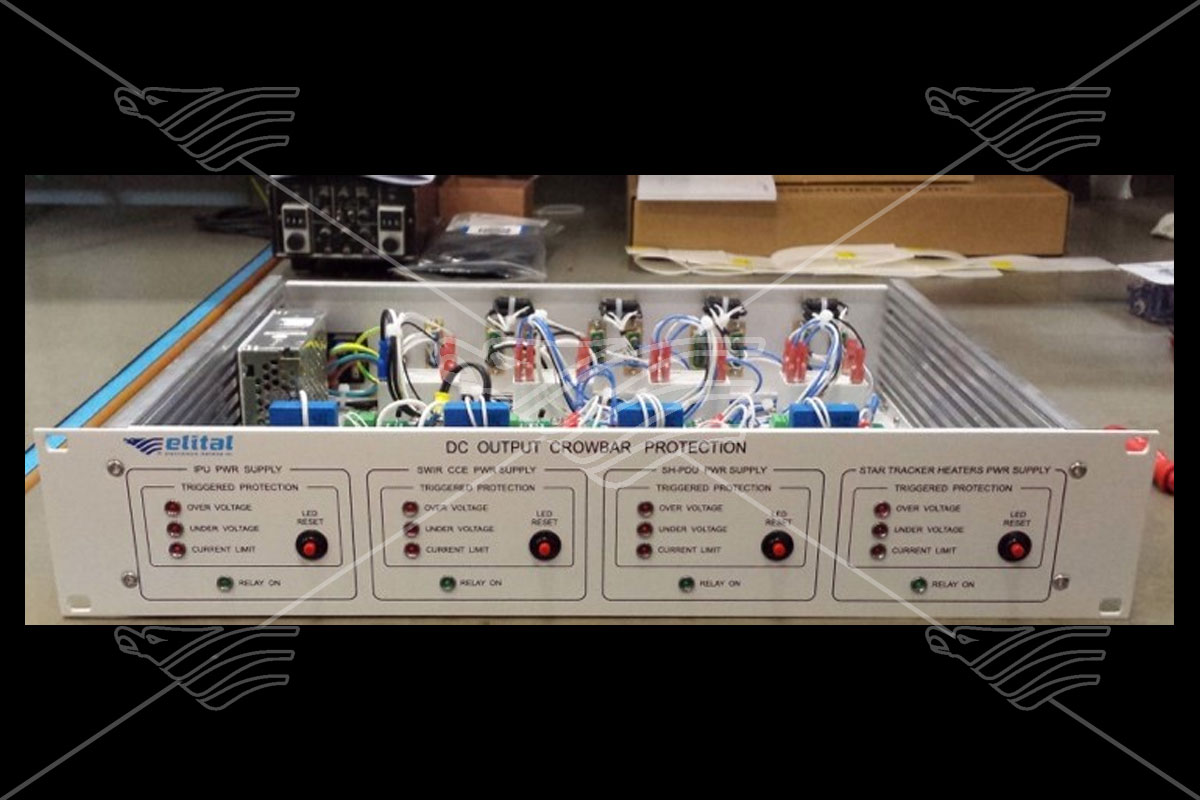

• Provide Over Voltage protection (OVP)
• Provide Over Current Protection (OIP)
• Simulate and monitor inhibition and separation straps,
• Pyro inhibition capability (1N + 1R) and status monitor,
• Provide High power commands capability
• Acquire and display battery voltages of the on-board batteries,
• Acquire battery thermistors
• Monitor and controls of the main bus voltage
• Manage the safety loop

Harness, Cabling, PCB Mounting

Cabling and harness for digital and analog signals and Radio Frequency.

Cabling and harness for EGSE and Equipment

Performances:

• Digital Cables;
• Flex Cables;
• Rigidflex Cables;
• Thema cycles;
• Pin-to-pin and pin-to-all harness tester
• RF Characterisation
