DATA SHEET COMMINIPACK 2300

• Performances:

  Compliants IP67, MILSPEC4150J, STANAG4280, ATA300, IATA.
  color: Black, Desert, Red
  Tri band terminal: X, Ku and Ka Band,
  Carbon Fiber Reflector
  3 Rack Units for the the user equipment

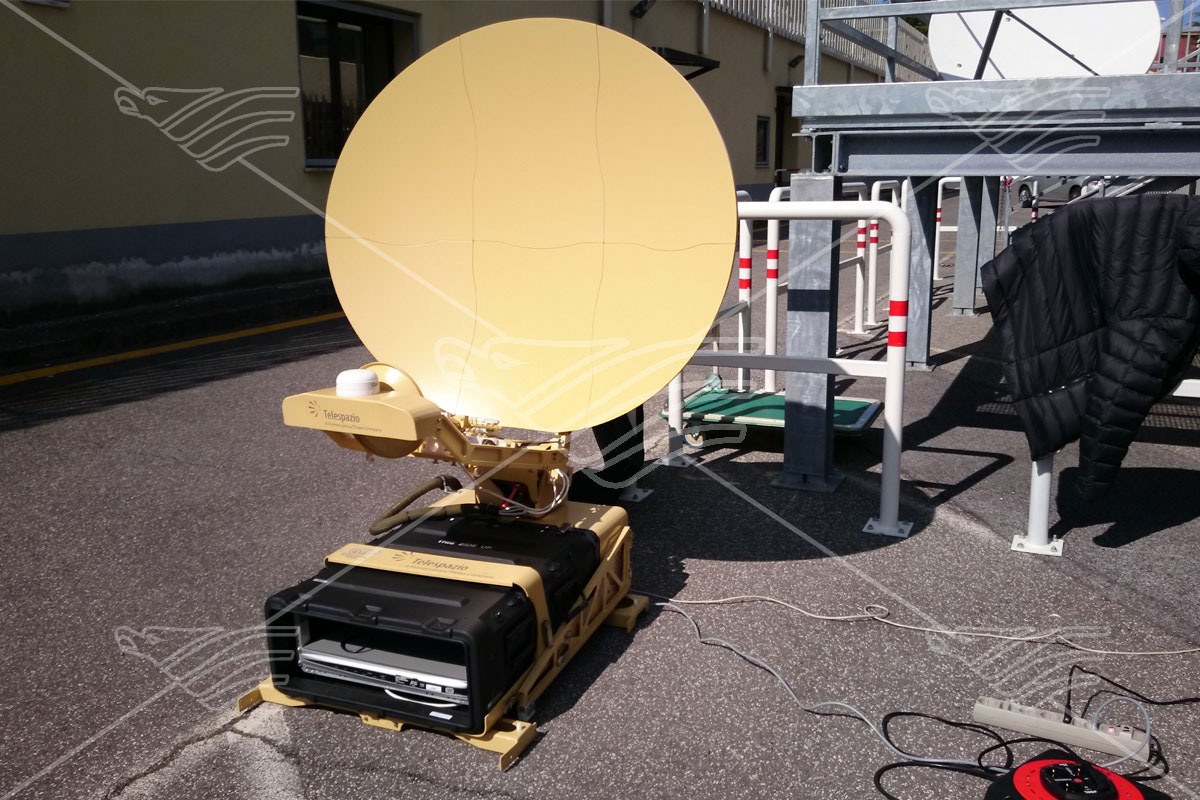

  Main Antenna Pack:

  Elevation over Azimuth Platform,
  Fully automatic system,
  Carbon Fiber Main Reflector,
  Dismountable main reflector,
  Stabilizers,
  ACUmini built-in
  digital Beacon Receiver built-in
  Sensors:
  GPS
  Trim sensors
  Fluxgate
  ACU 3 Button operability,

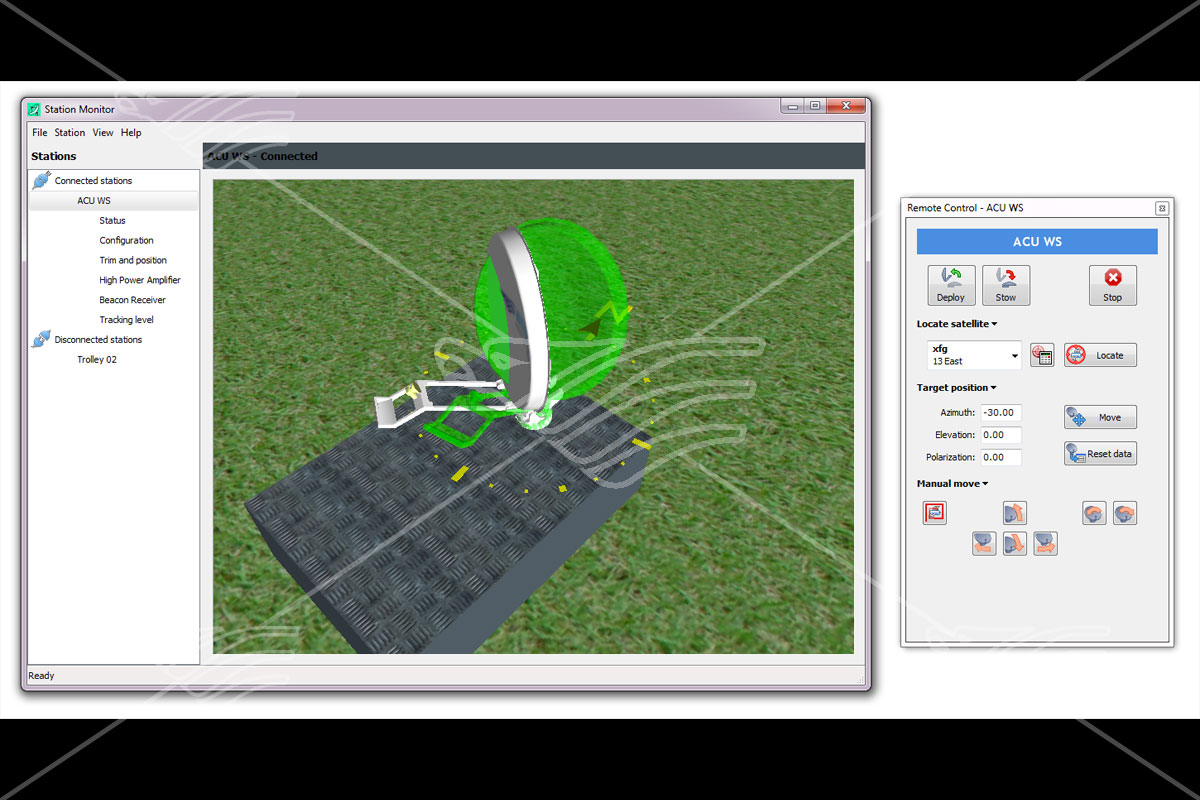

  ACU Gui Client (Software)
  n.3 Rack Units 19″
  Ka Band Performances.

  Trolley Aux:

  Antenna reflector parts,
  Mechanical Chassis
  Documentation

• Trolley Aux:
• Antenna reflector parts,
• Mechanical Chassis
• Documentation

• OPERATIONAL CONDITIONS:
  • Operational Temperature -20°C to +45° C
  • Operational Humidity 90% non-condensing
  • Operational Wind Speed Max 12 m/s,
  • Operational Altitude Max 3,000 m (9,850 ft)
  • Rainfall Max 90 mm rain per hour
  • Storage Temperature -40°C to +70°C (-40°F to +158°F)
  • Sealing Class IP65, including Power Supply Unit
  • Deployment and Set-up 5 < 10 minutes
  • Standard IP65
