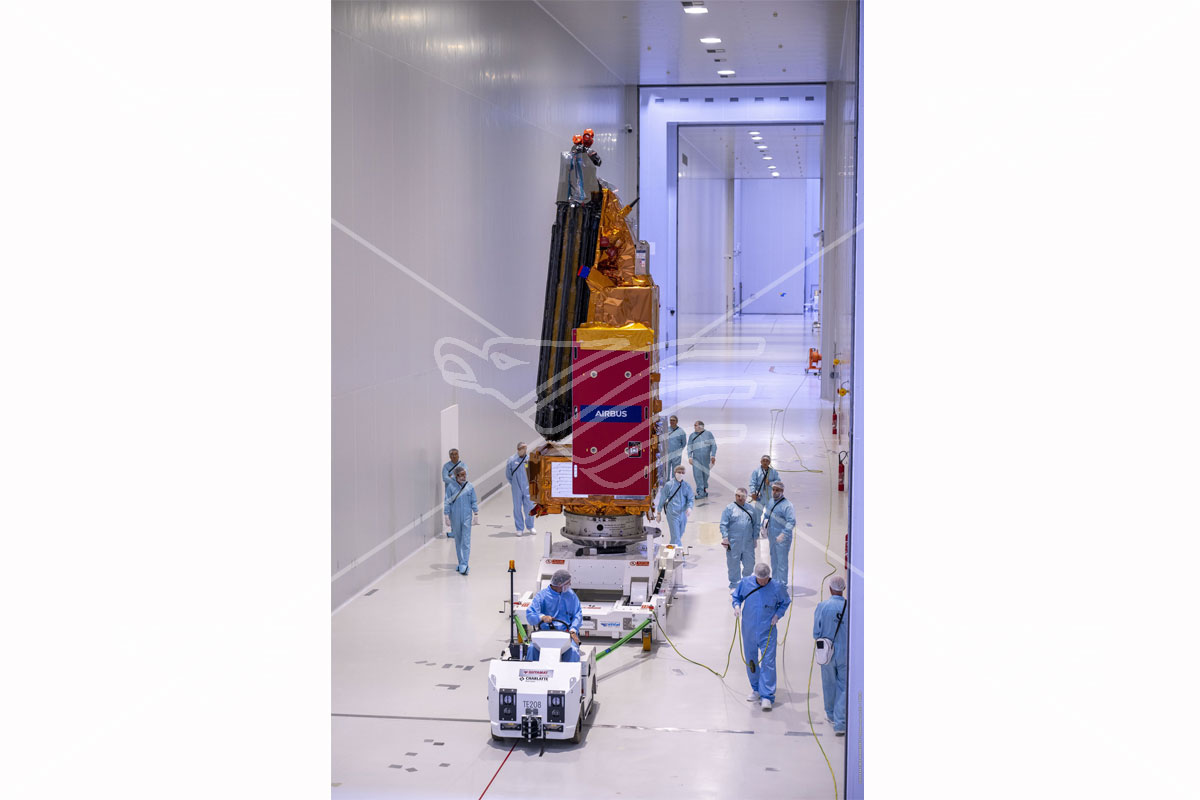

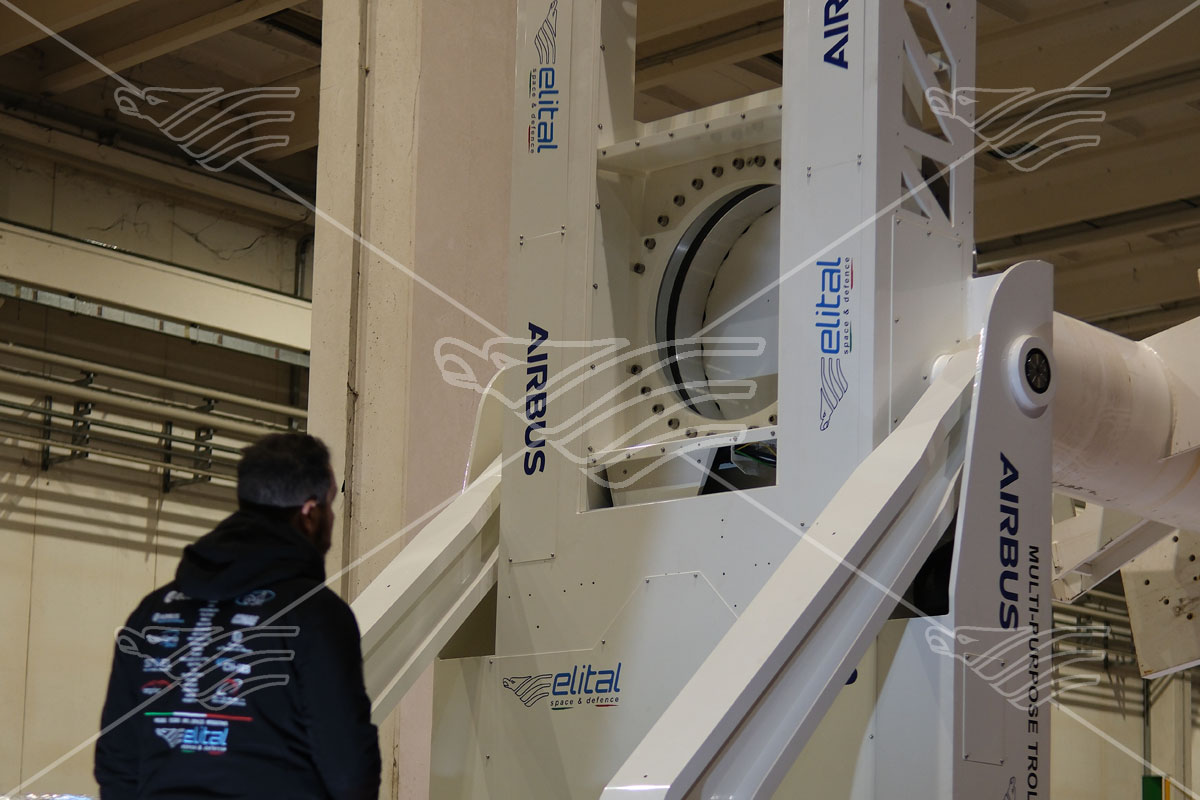

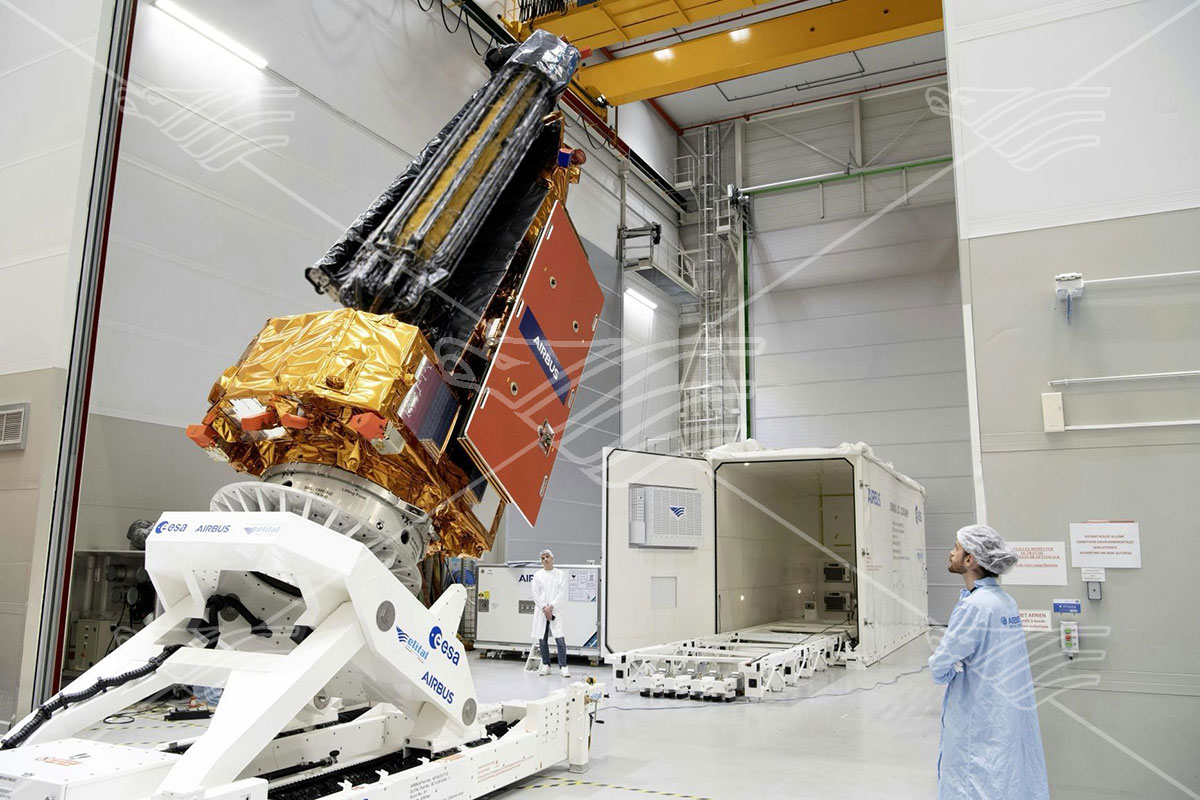

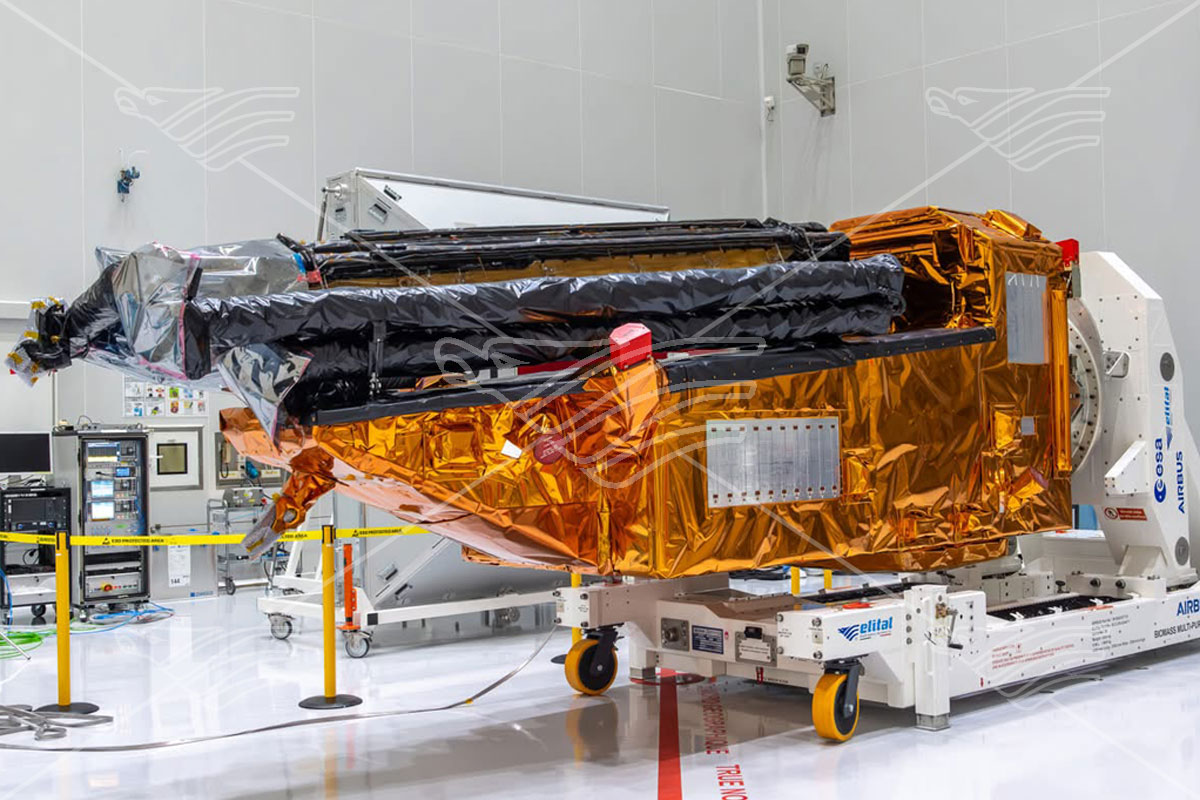

Multi Purpose Trolley large size
DIMENSIONSLarge |
MASS2500kg. (Vertical and Horizontal) |
BASELINETilting and Rotation Axis, electric driving |
OPTIONElectronic controlled Scaffholding |
CLEANILESSInsert Value |
CERTIFICATIONSInsert value |
PERFORMANCESInsert Value |
HERITAGEInsert value |
TRLInsert Value |
|

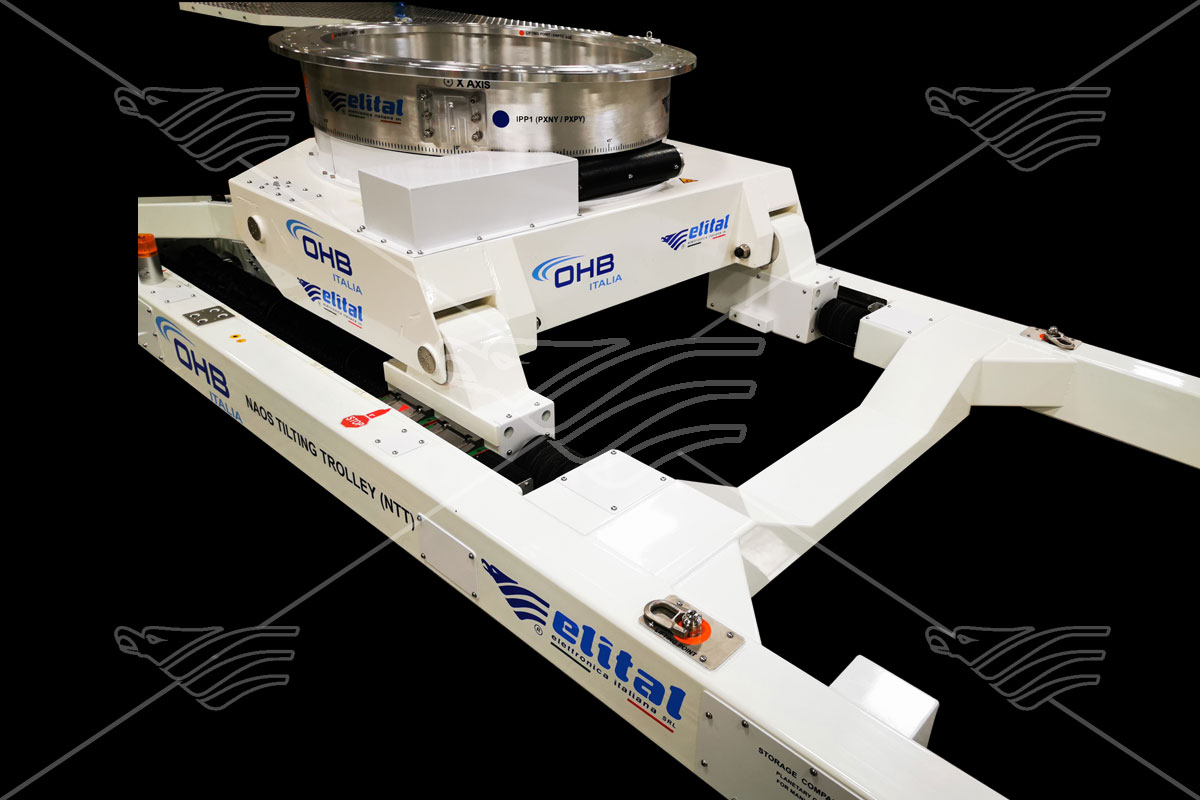

Multi Purpose Trolley medium size
DIMENSIONSLarge |
MASS1000kg. (Vertical and Horizontal) |
BASELINETilting and Rotation Axis, electric driving |
OPTIONElectronic controlled Scaffholding |
CLEANILESSInsert Value |
CERTIFICATIONSInsert value |
PERFORMANCESInsert Value |
HERITAGEInsert value |
TRLInsert Value |
|
Tilting Trolley – Multipurpose Trolley

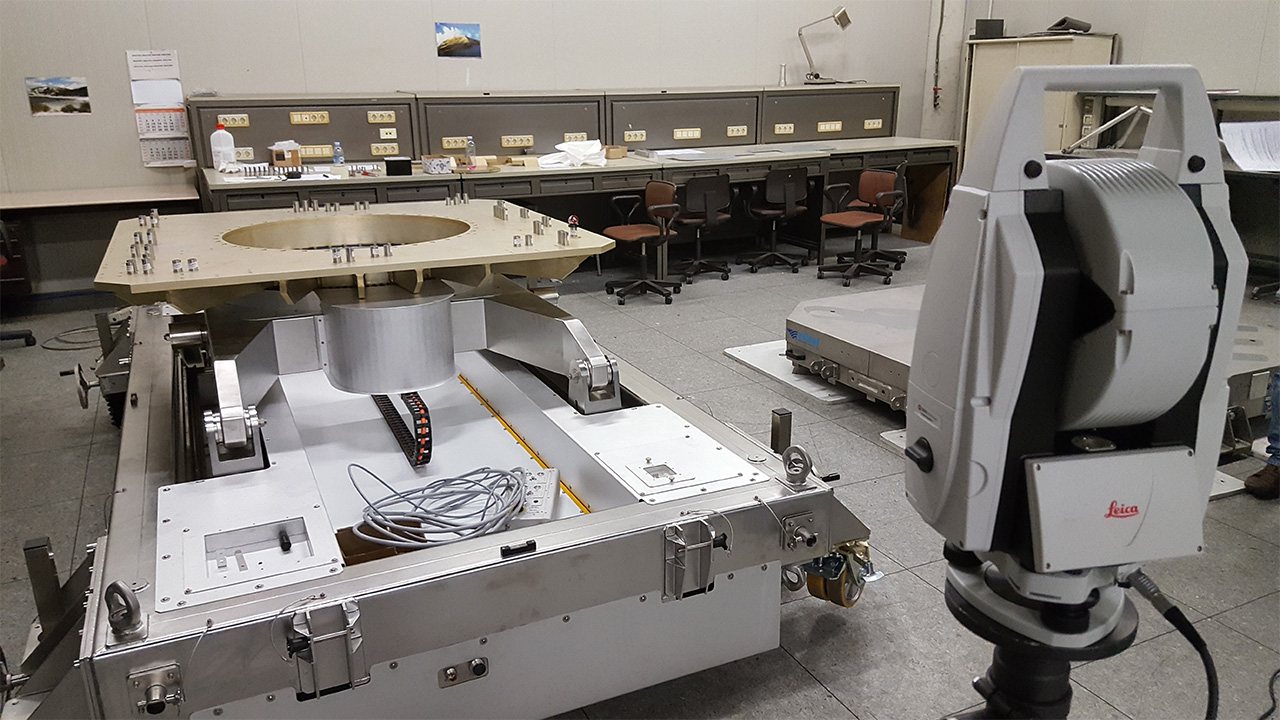

Multi Purpose Trolley ISO5
CLEANILESS LEVELSISO8: Class 100.000 (for flight hardware) |

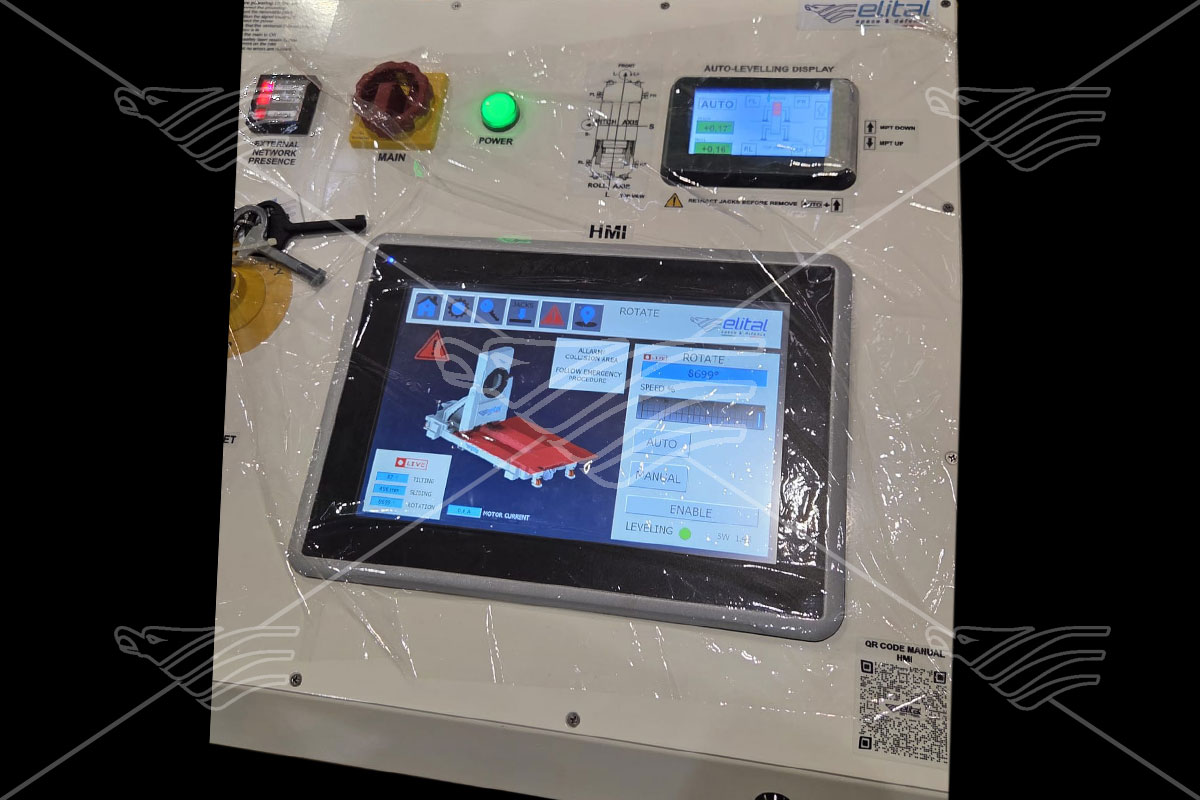

MAIN FEATURESRemote controlled, |

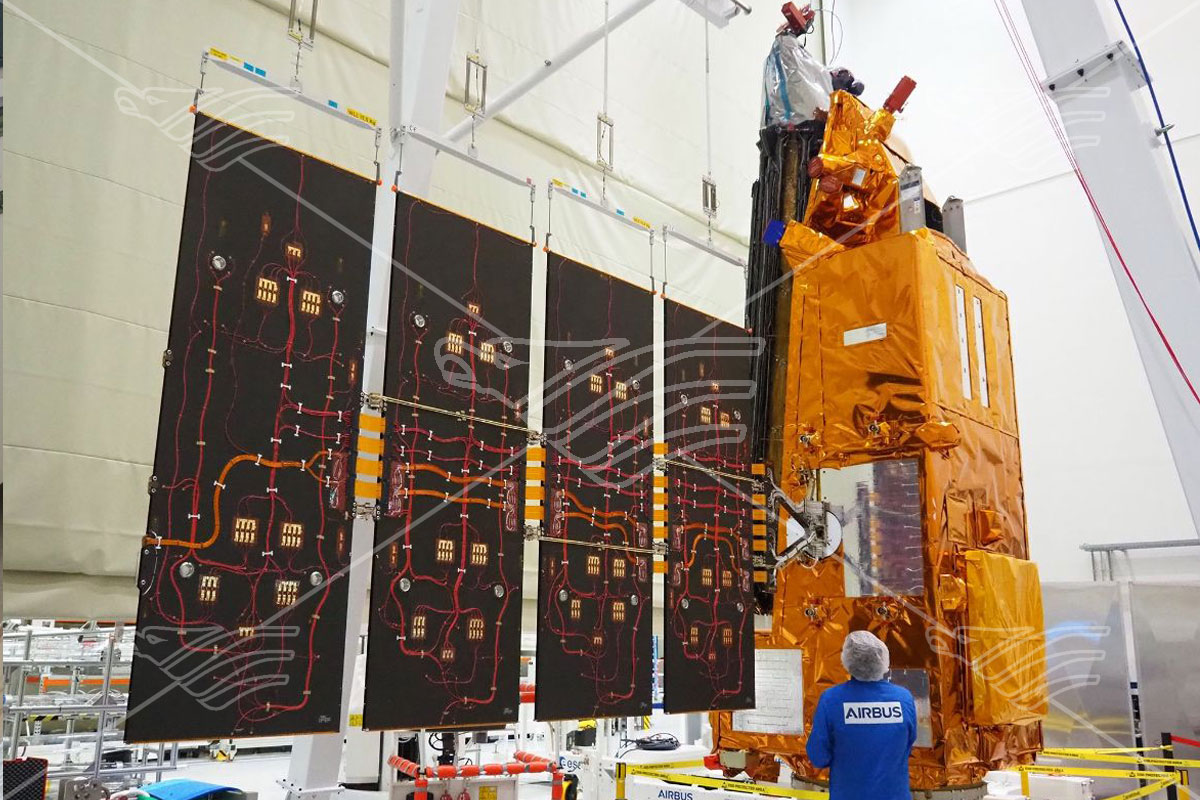

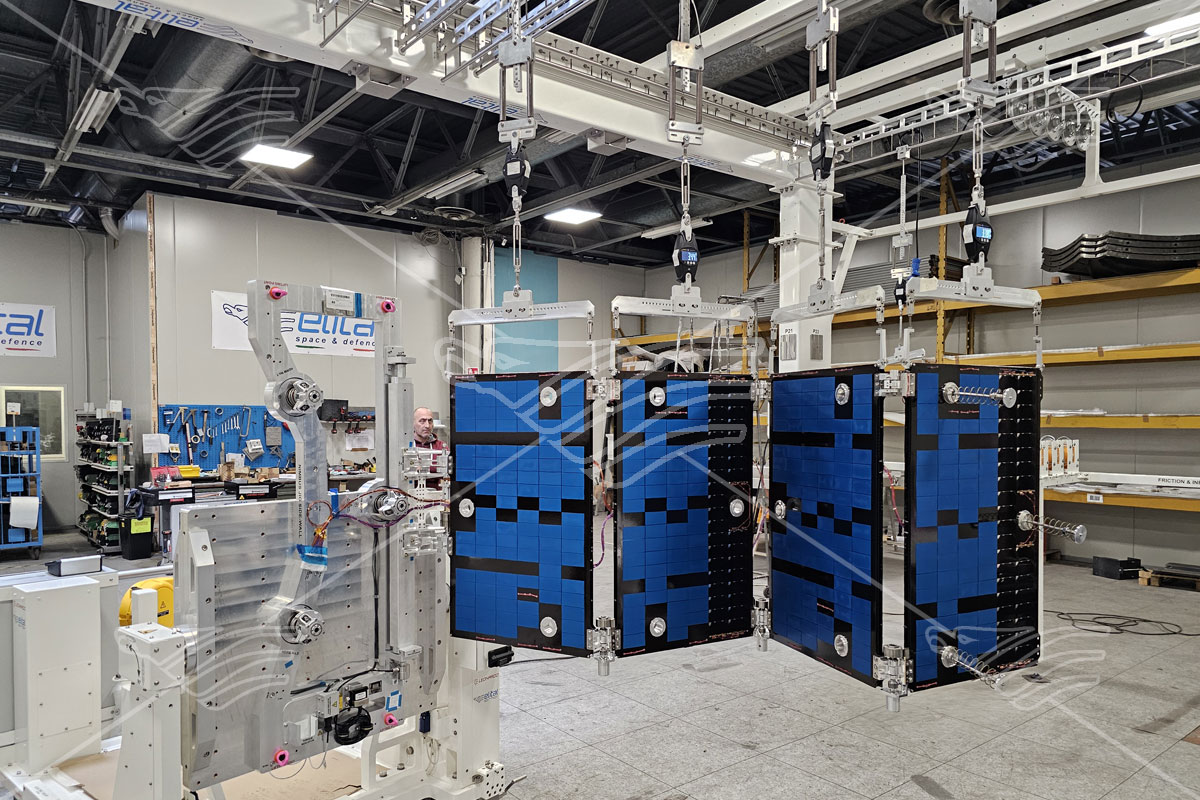

SaW RIG 0g Solar Array Deployment Systems
MAIN FEATURESThe Saw RIG will be used to perform two phases of the solar array wings:
The deployment Saw RIG rails are composed by two rails in stainless steel with 5 longitudinal linear bearing for lateral displacement and each system is equipped with a carriage item with panel’s interface. |

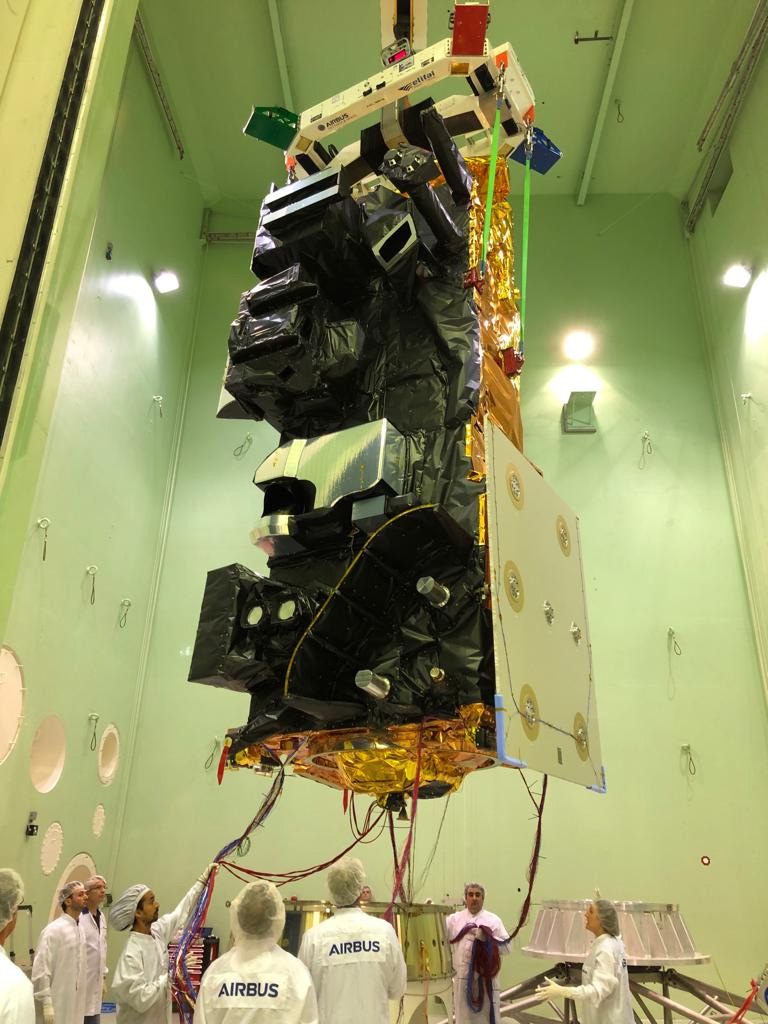

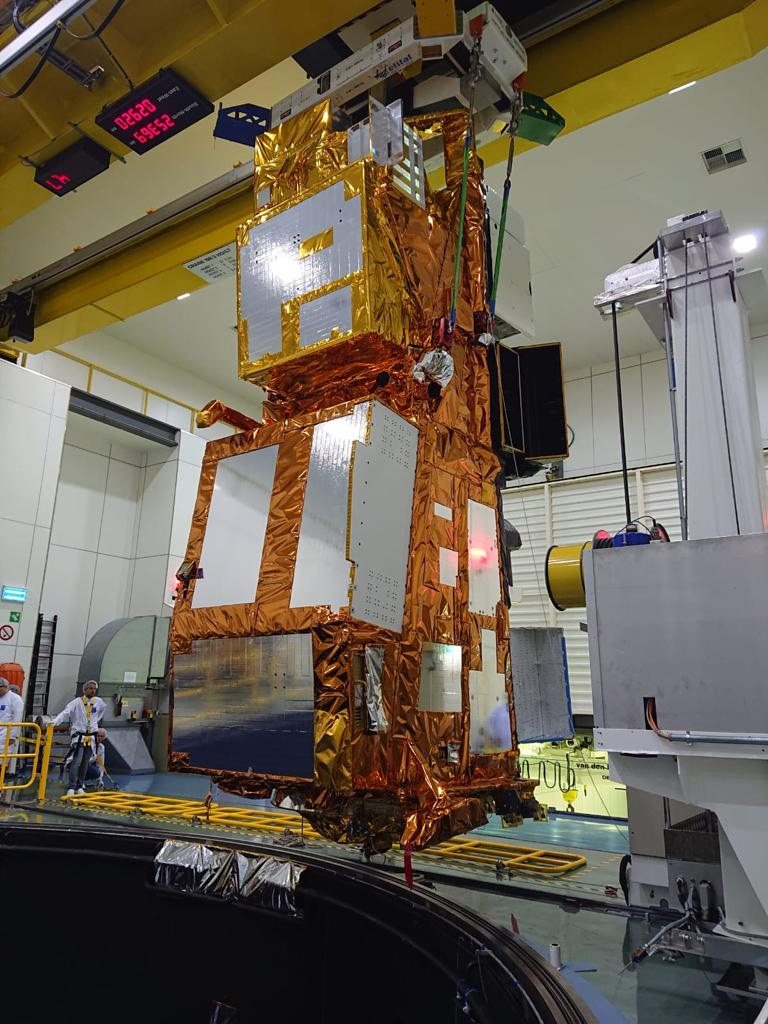

VLD and HLD products are suitable for instruments and satellite lifting into the clean room chambers.
Vertical/Horizontal Lifting/Hoisting Device
MAIN FEATURESRemote Controlled, |

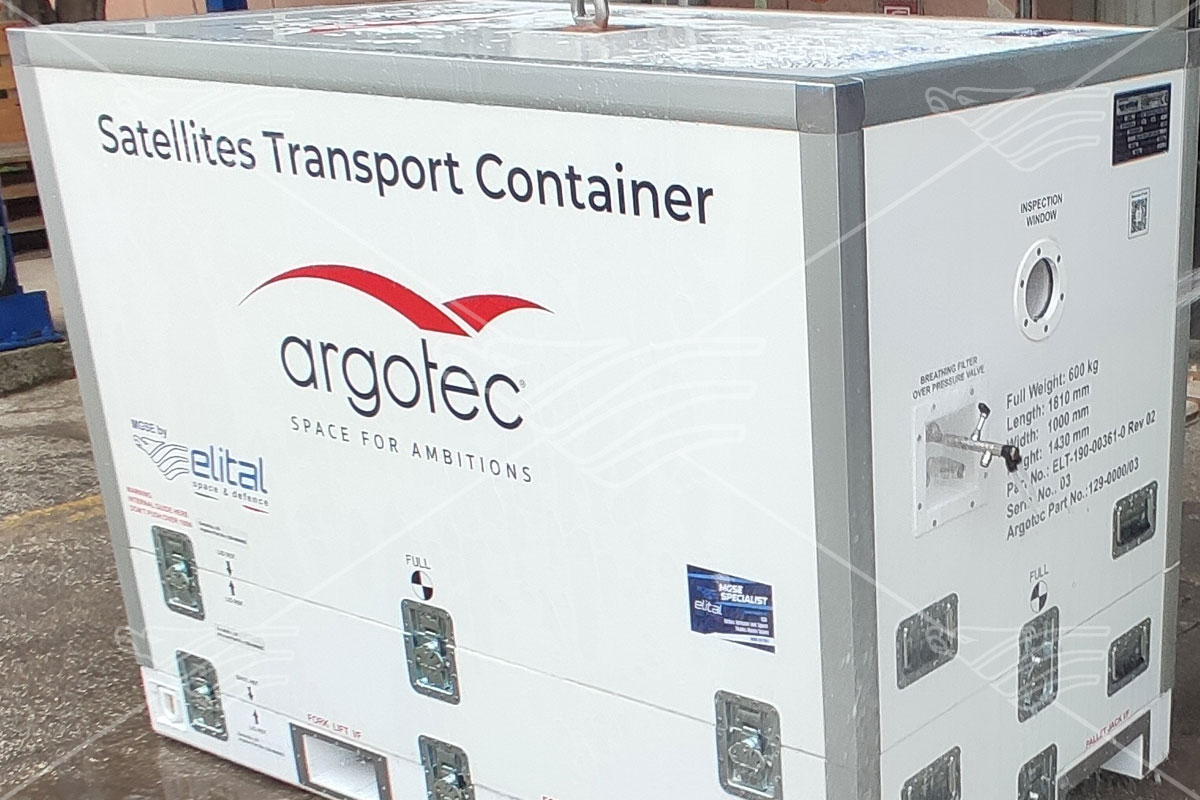

Transport Container Instruments & Satellite (STC)
|
Elital is one of European manufacturer of Satellite Transport Containers. The technology proposed is at the State of the Art. |
|
CLEANILESS LEVELSISO8: Class 100.000 (for flight hardware) |
MAIN FEATURESHigh Precision Flight Hardware Interfaces |
Elital is one of European manufacturer of Satellite Transport Containers.
The technology proposed is at the State of the Art.

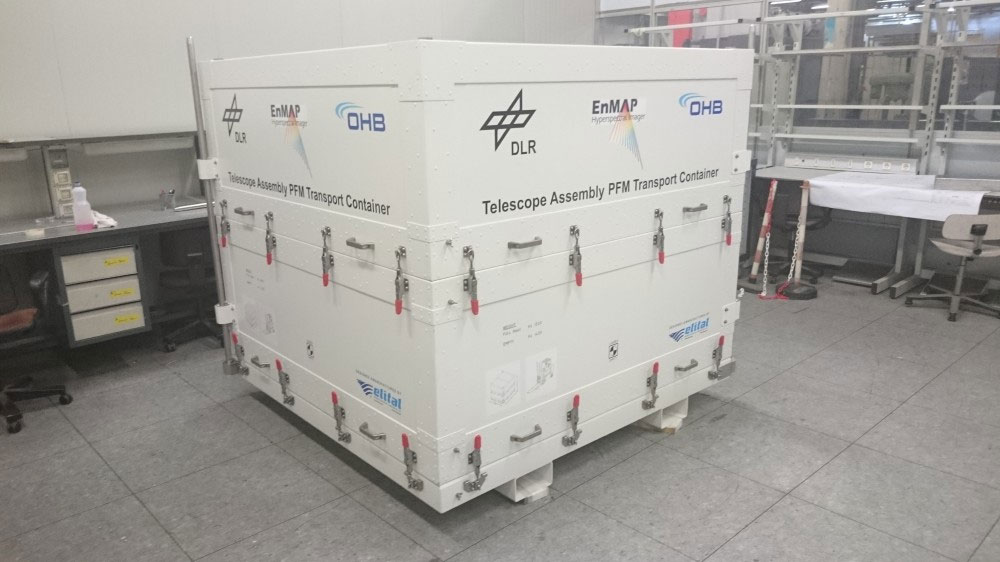

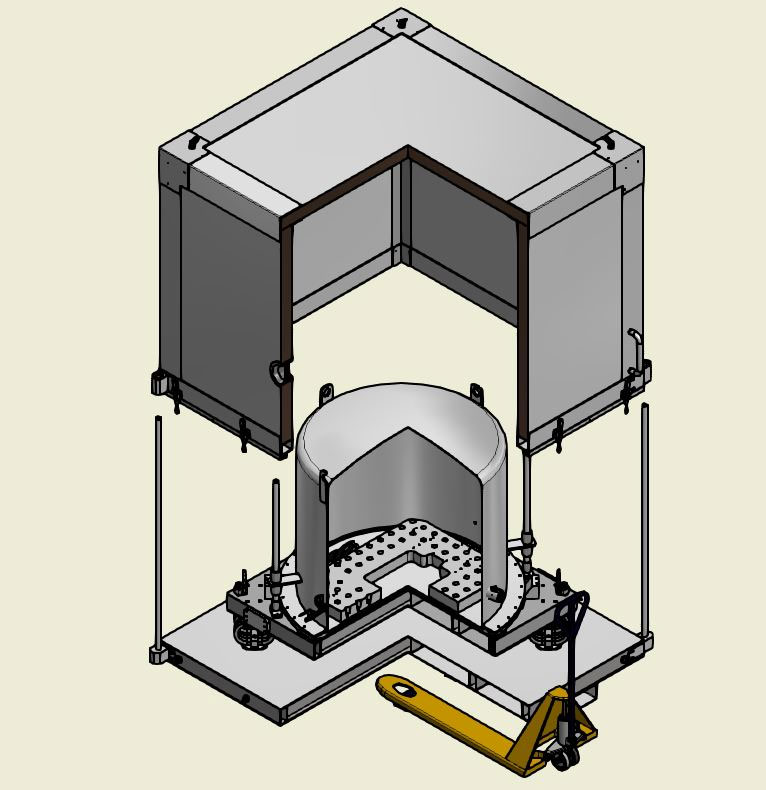

Transport Container ISO 5 Optical Equipment
MAIN FEATURESExternal envelope ISO 8 compliant, |

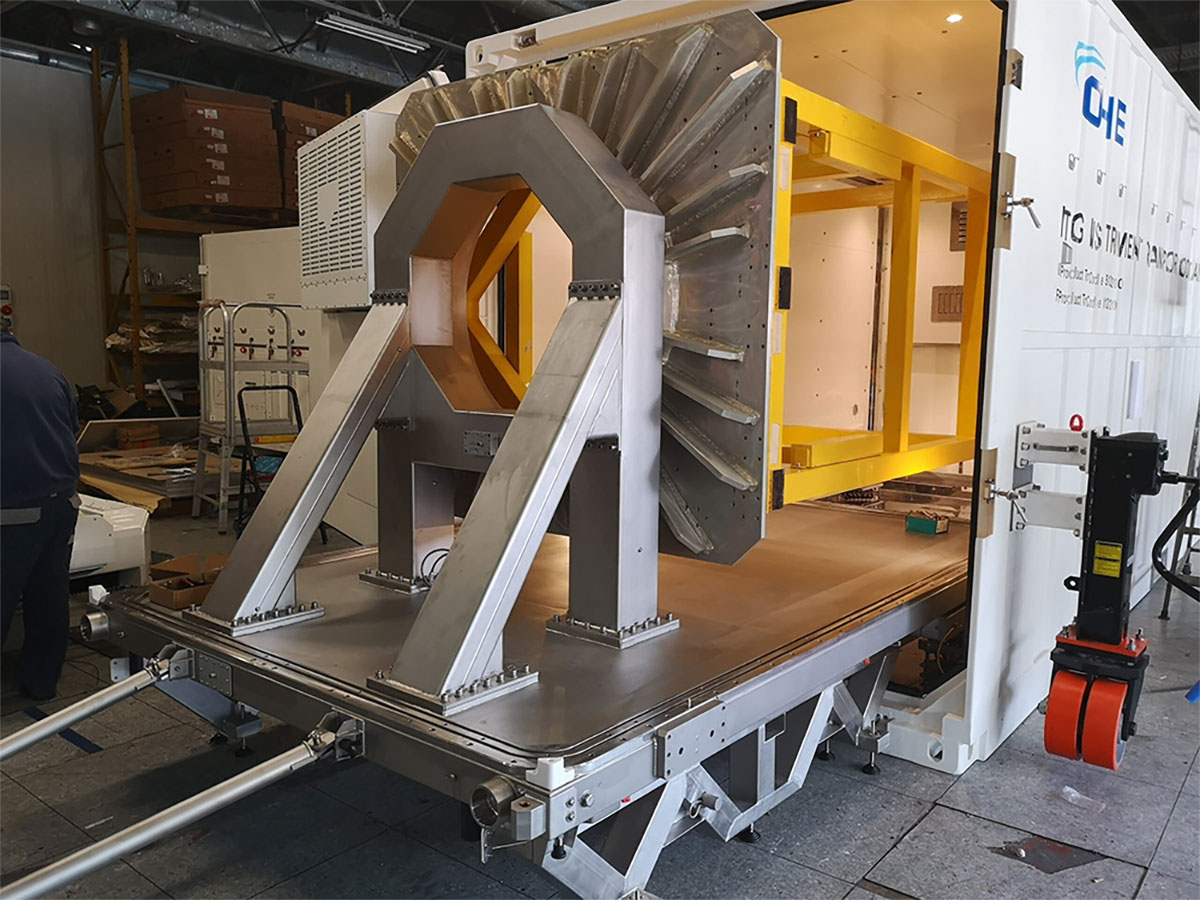

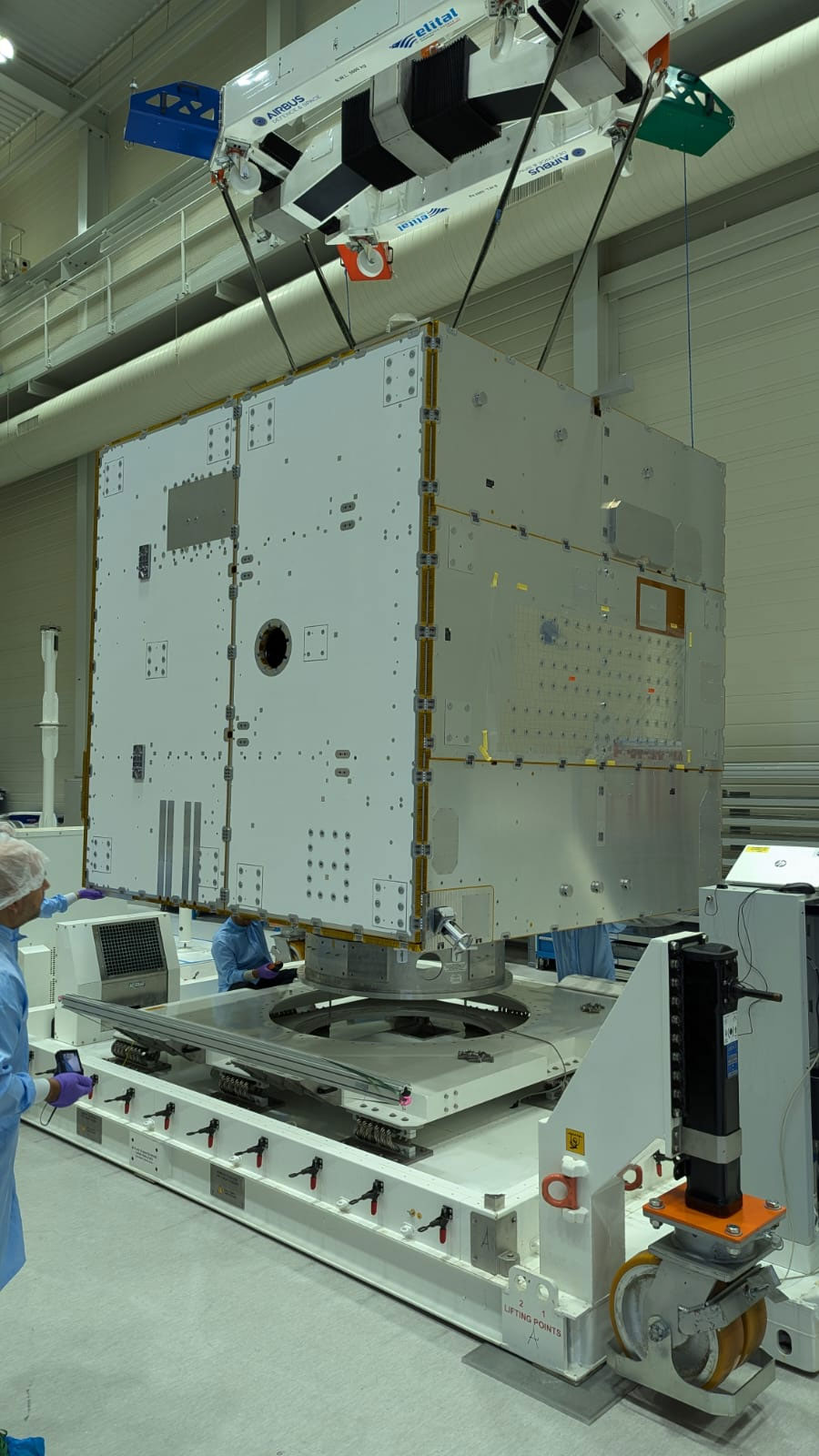

Platform Transport Container
MAIN FEATURESLaunch Vehicle Adapter interface, |
Payloads/Instruments Transport Containers.
Instrument Transport Containers
CLEANILESS LEVELSISO8: Class 100.000 (for flight hardware) |
MAIN FEATURESHigh Precision Flight Hardware Interfaces |

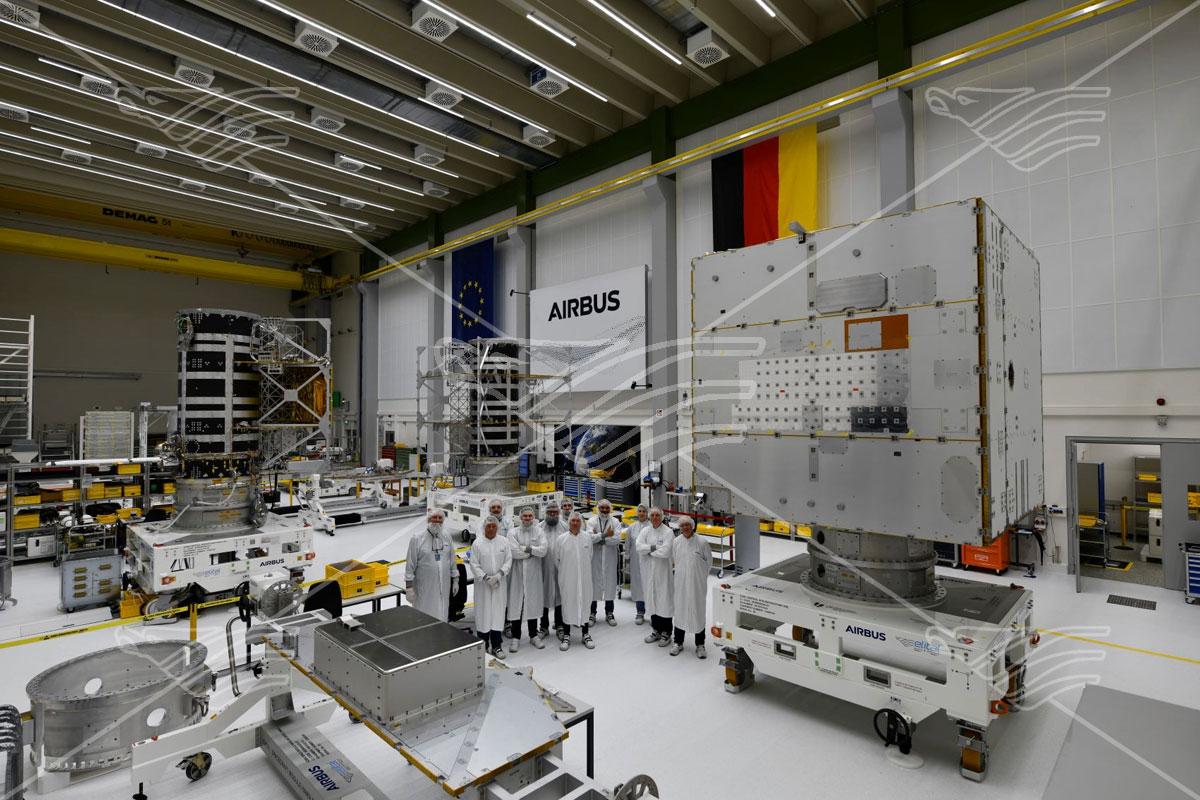

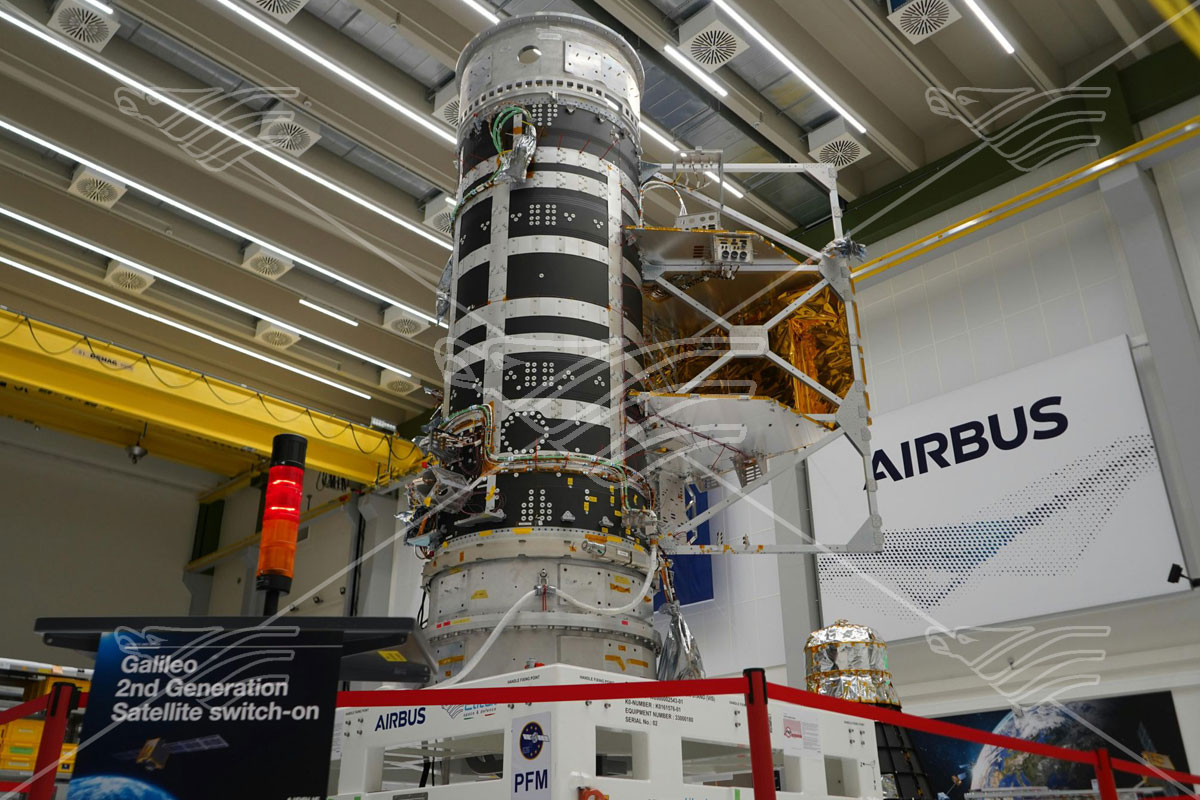

Handling and Integration stands for satellite panels and structures.
6DoF stands
MAIN FEATURESClean Room Compliant, |
Turnover Trolley
MAIN FEATURESHigh Accuracy movements, |
Vibration Adapters
MAIN FEATURESAluminium Alloy frame, |
OGSE – Optical Tables
CLEANILESS LEVELSISO5: Class 100 (for optical modules) |
MAIN FEATURESHigh Precision Flatness, |

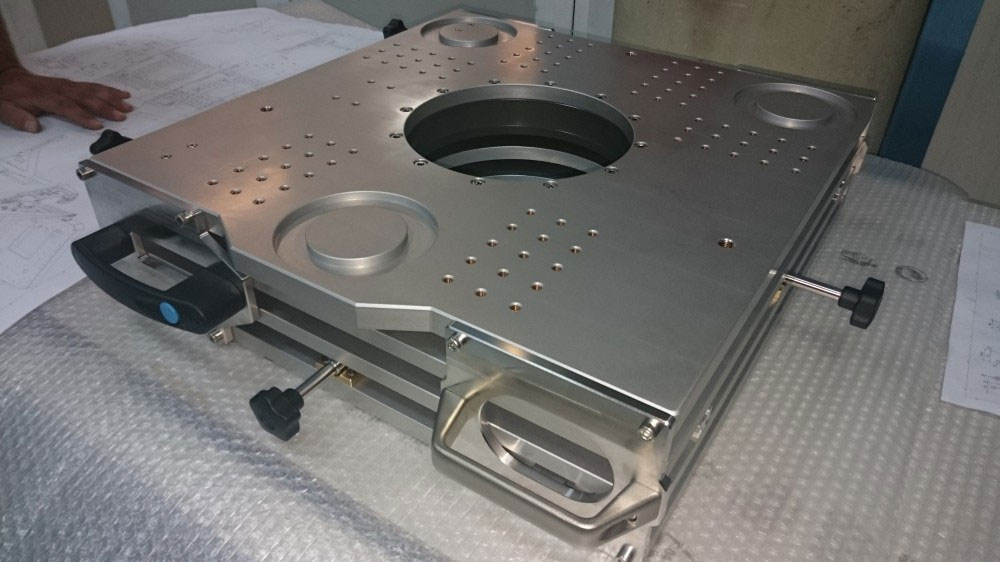

Micro-metric positioner for optics instruments.
OGSE – 4DoF Micro Positioner
CLEANILESS LEVELSISO5: Class 100 (for optical modules) |
MAIN FEATURESMicro positioning devies |
Carbon Fiber frames, for environmental test of Flight Hardware in Thermal Vacuum chambers.
OGSE – 4DoF Micro Positioner
MAIN FEATURESVacum Compliant structure, |
SAR Antenna Testing.
Thermal & Anechoic Chamber MGSE
The MGSE is radio frequency transparent
The Mechanical stability is studied to compensate the thermal behaviour of the materials.
The machine showed below, delivered in Argentina for SaoCom mission, has:
- 6000 mm height,
- 5 Degrees of Freedom,
- 0,005° of accuracy,
- Working Temperature -70 to +70 °C,
- Fully integrated with Thermal Chamber by ATT (Angelantoni Company),
Handling Trolley Equipments
MATERIALSStainless Steel, |
MAIN FEATURESPivoting Wheels |

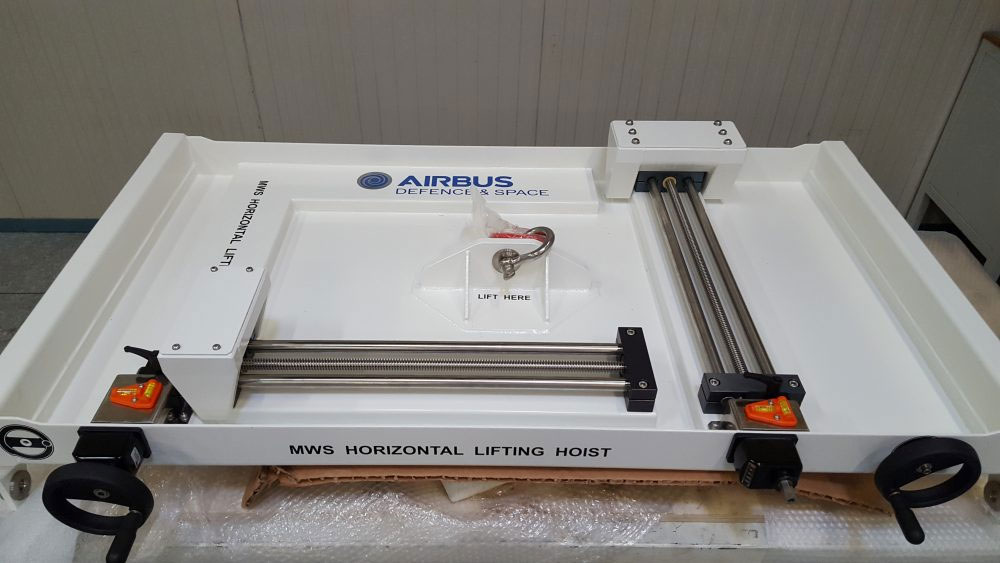

VLD products are suitable for instrument and satellite lifting.

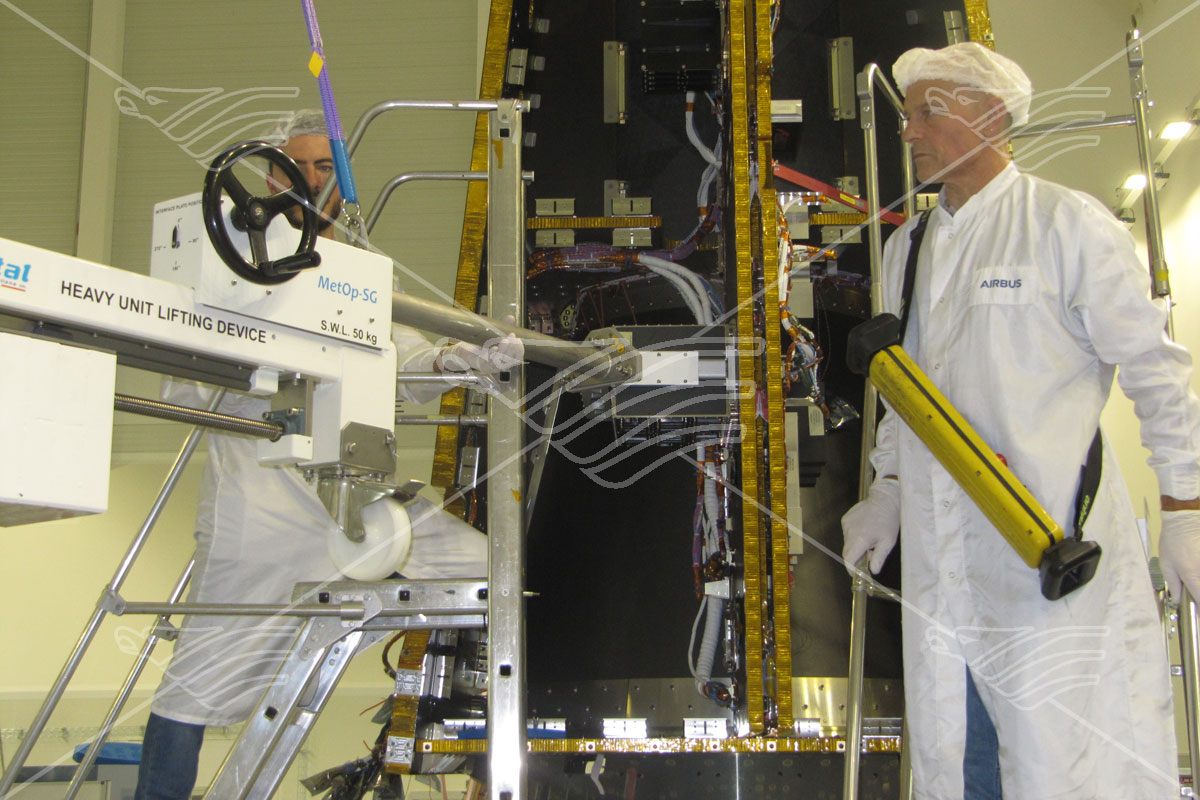

Lifting Devices (LD)
MAIN FEATURESSolid structure, |

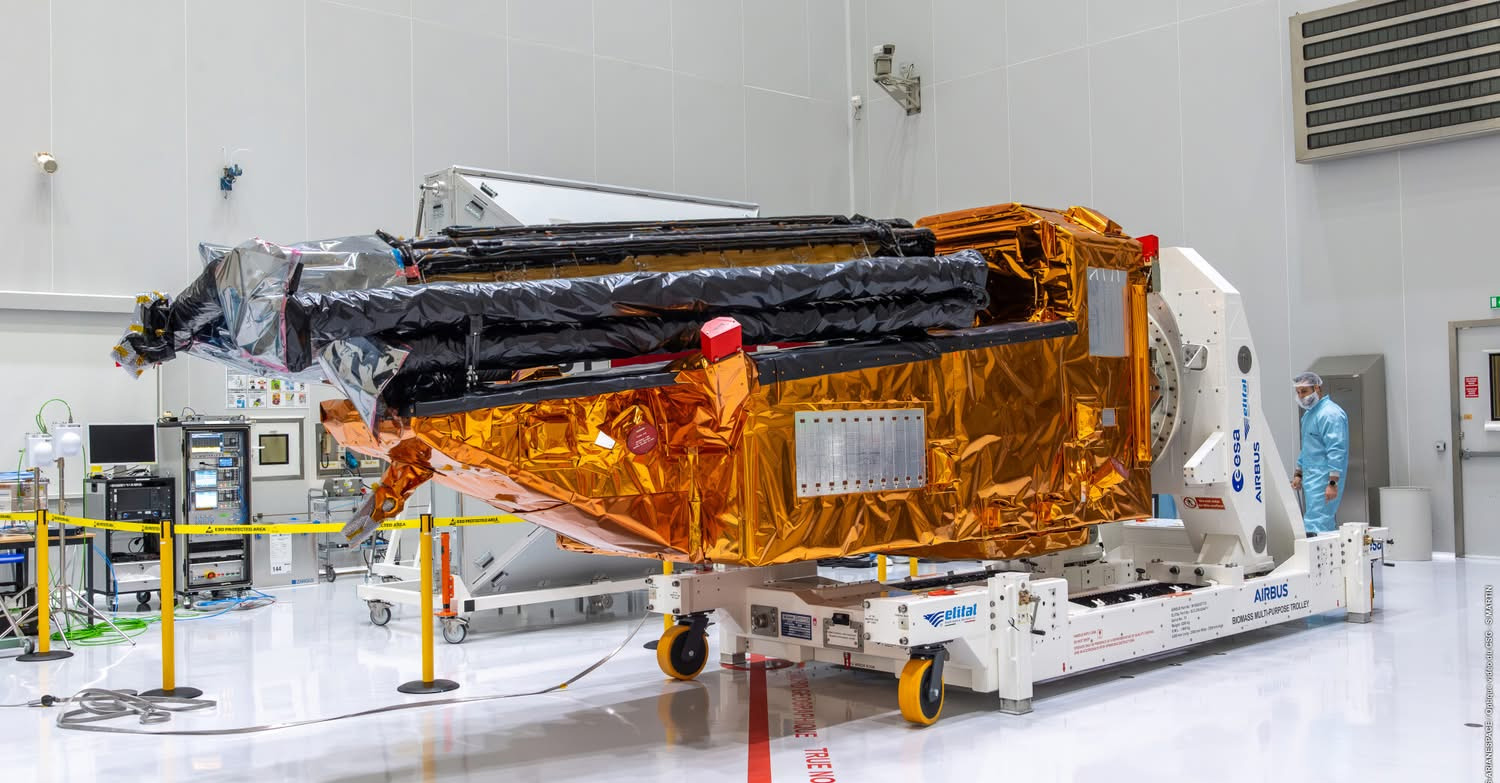

Multi Purpose Trolley large size
Multi Purpose Trolley medium size
DIMENSION:
LARGE
MASS:
2500kg. (Vertical and Horizontal)
BASELINE:
Tilting and Rotation Axis, electric driving
OPTION:
Electronic controlled Scaffholding
CLEANILESS:
Insert Value
CERTIFICATIONS:
Insert Value
PERFORMANCES:
Insert Value
HERITAGE:
Insert Value
TRL:
Insert Value
DIMENSION:
MEDIUM
MASS:
1000kg. (Vertical and Horizontal)
BASELINE:
Tilting and Rotation Axis, electric driving
OPTION:
Electronic controlled Scaffholding
CLEANILESS:
Insert Value
CERTIFICATIONS:
Insert Value
PERFORMANCES:
Insert Value
HERITAGE:
Insert Value
TRL:
Insert Value

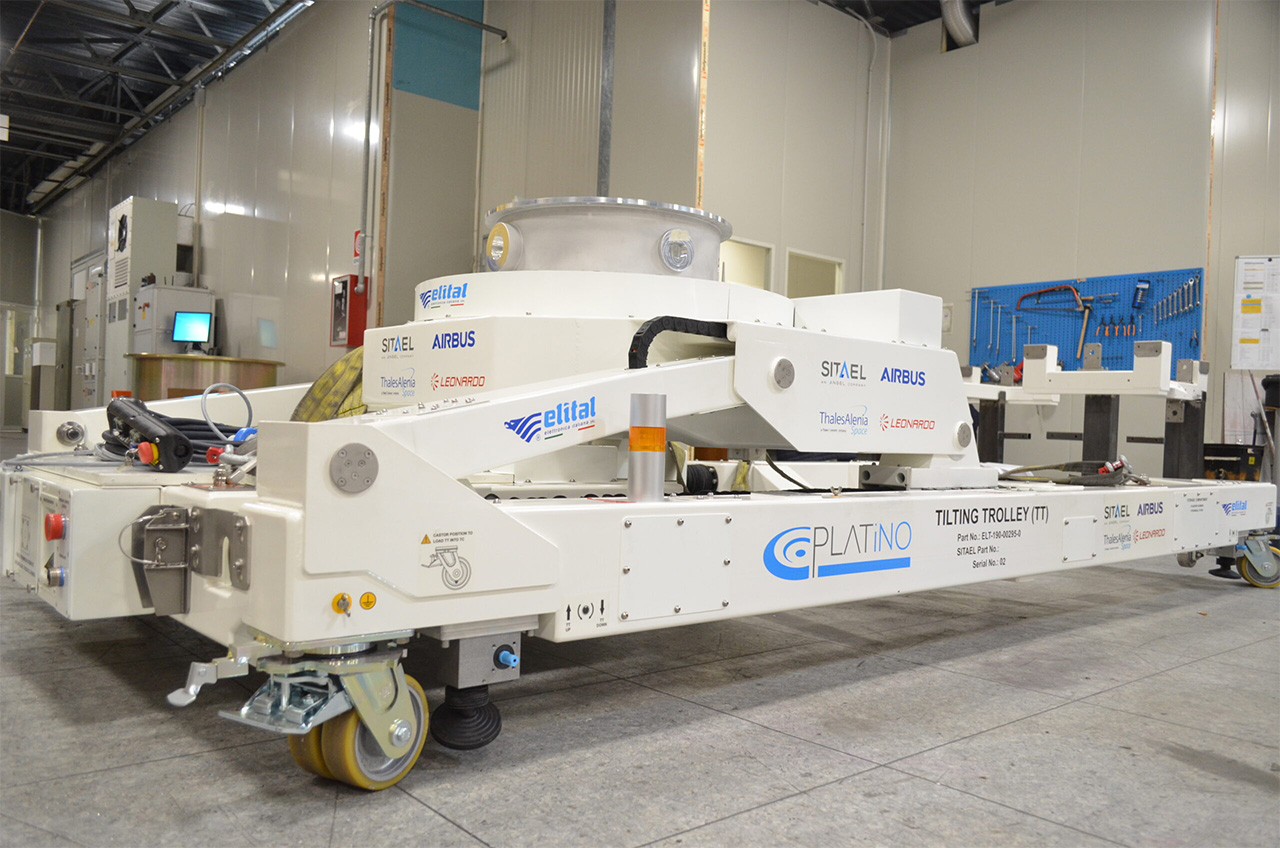

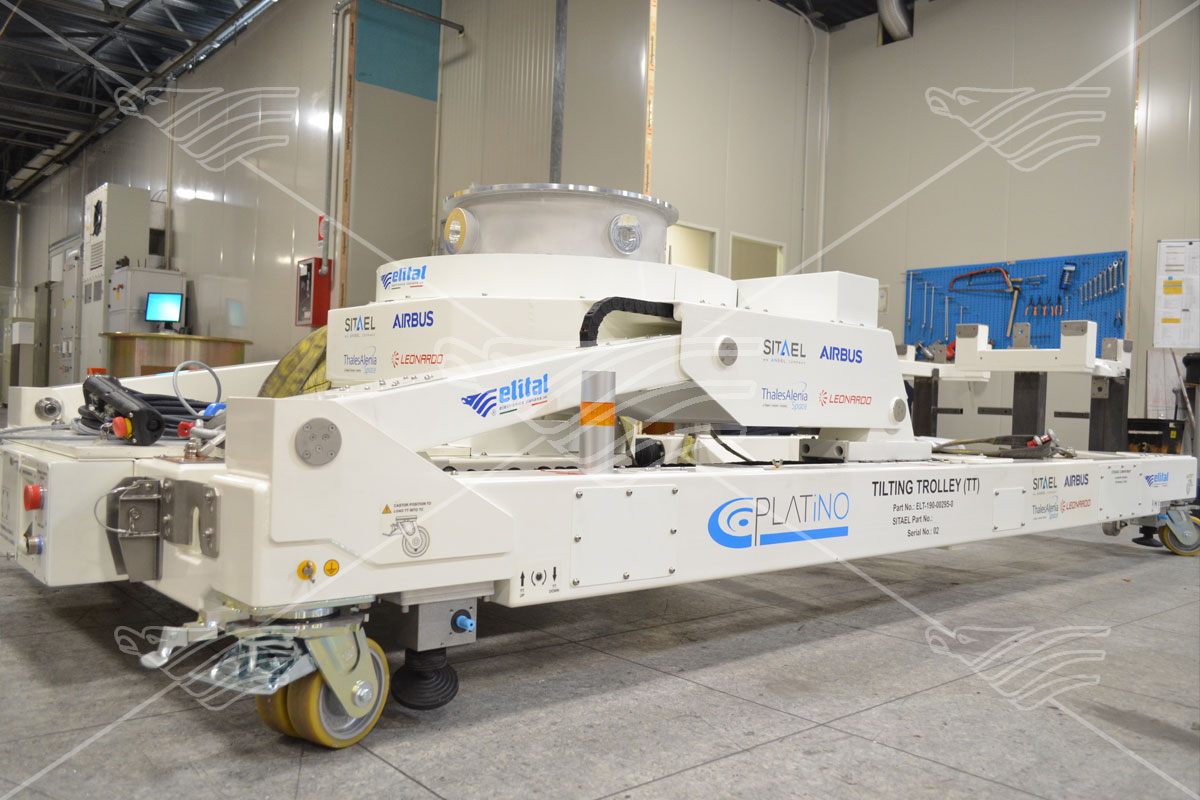

Tilting Trolley – Multipurpose Trolley

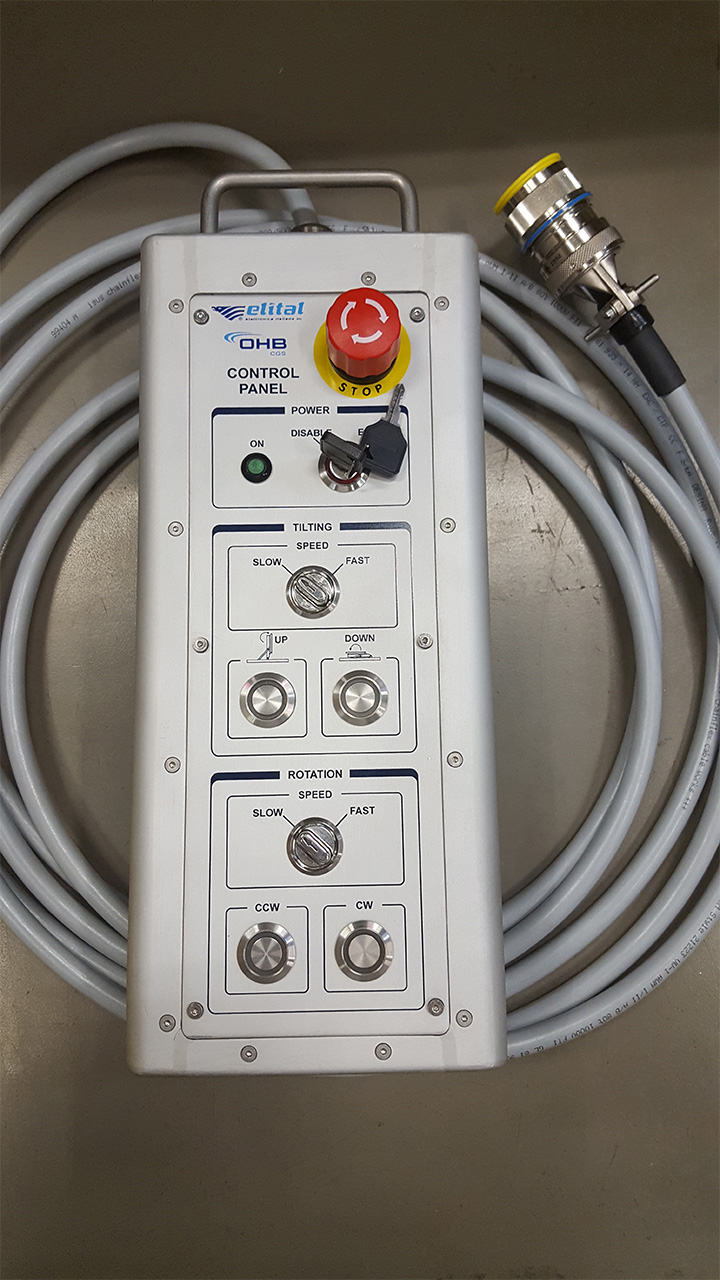

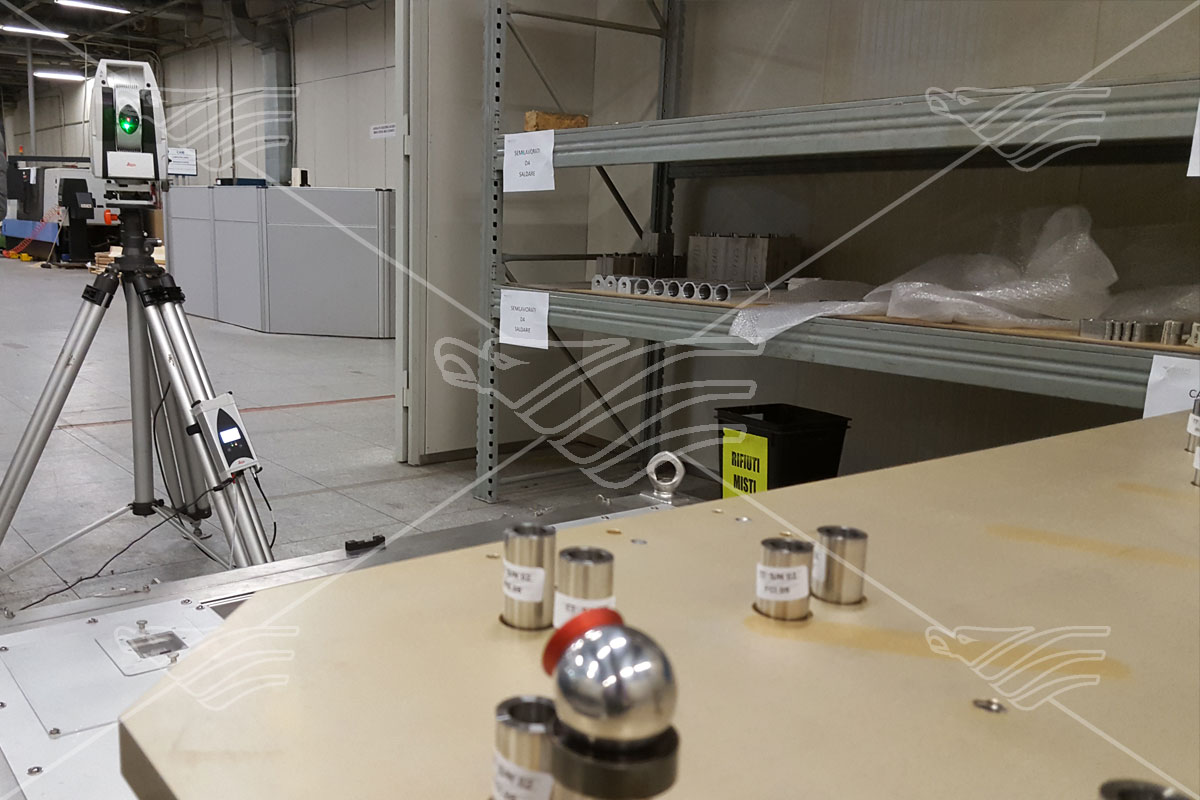

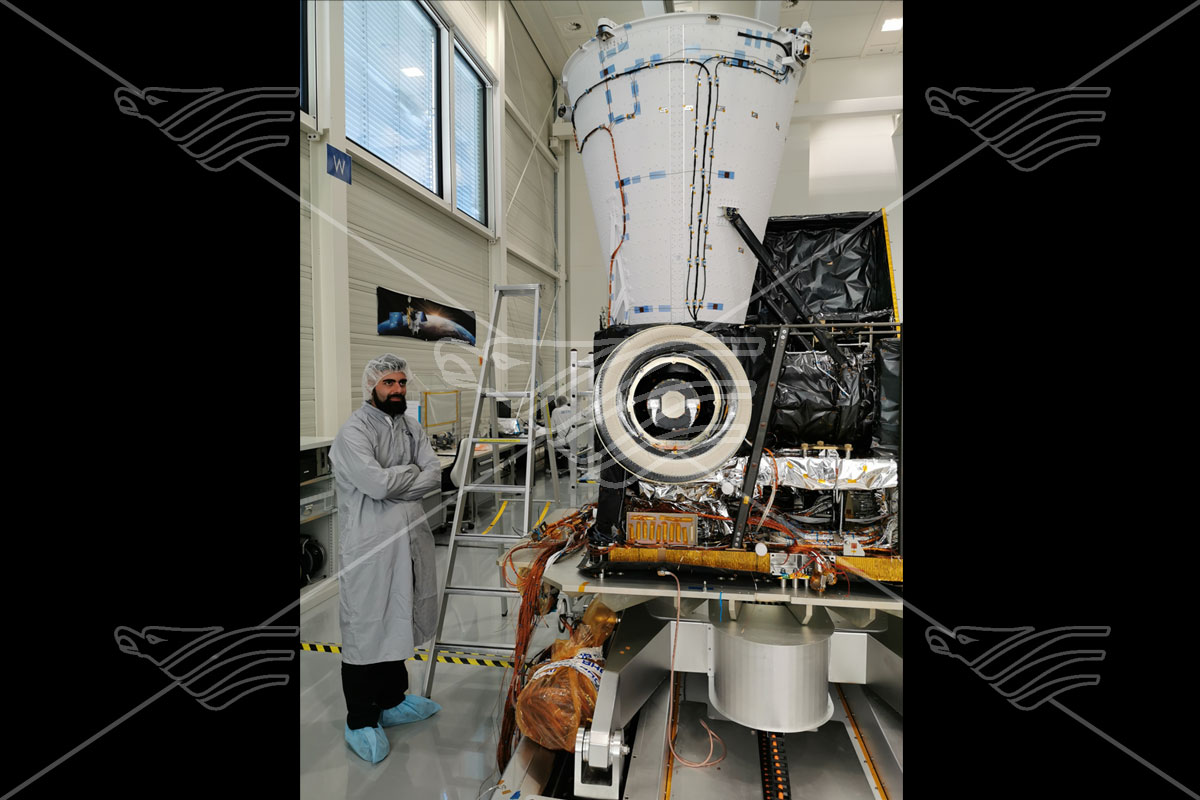

Multi Purpose Trolley ISO5
SaW RIG 0g Solar Array Deployment Systems
CLEANILESS LEVELS :
ISO8: Class 100.000 (for flight hardware)
ISO5: Class 100 (for optical modules)
MAIN FEATURES:
Remote controlled,
Digital Servo drives,
High accuracy movements,
Programmable positions,
Suitable for optical instruments,
Cleanliness compliant lubrication,
High Grade material manufacturing,
1, 2 or 3 Axis,
Protections for personnel,
CE certified,
MAIN FEATURES:
The Saw RIG will be used to perform two phases of the solar array wings:
Integration: the Saw Rig will have a central frame with hoisting winch.
Deployment: solar wings test up to 4 panels (upgradable to reach Conf.3).
Two system are independently and can be used in parallel on the same line (integration and deployment together – TBD the total SAW Rig length)
The deployment Saw RIG rails are composed by two rails in stainless steel with 5 longitudinal linear bearing for lateral displacement and each system is equipped with a carriage item with panel’s interface.
VLD and HLD products are suitable for instruments and satellite lifting into the clean room chambers.
Vertical/Horizontal Lifting/Hoisting Device

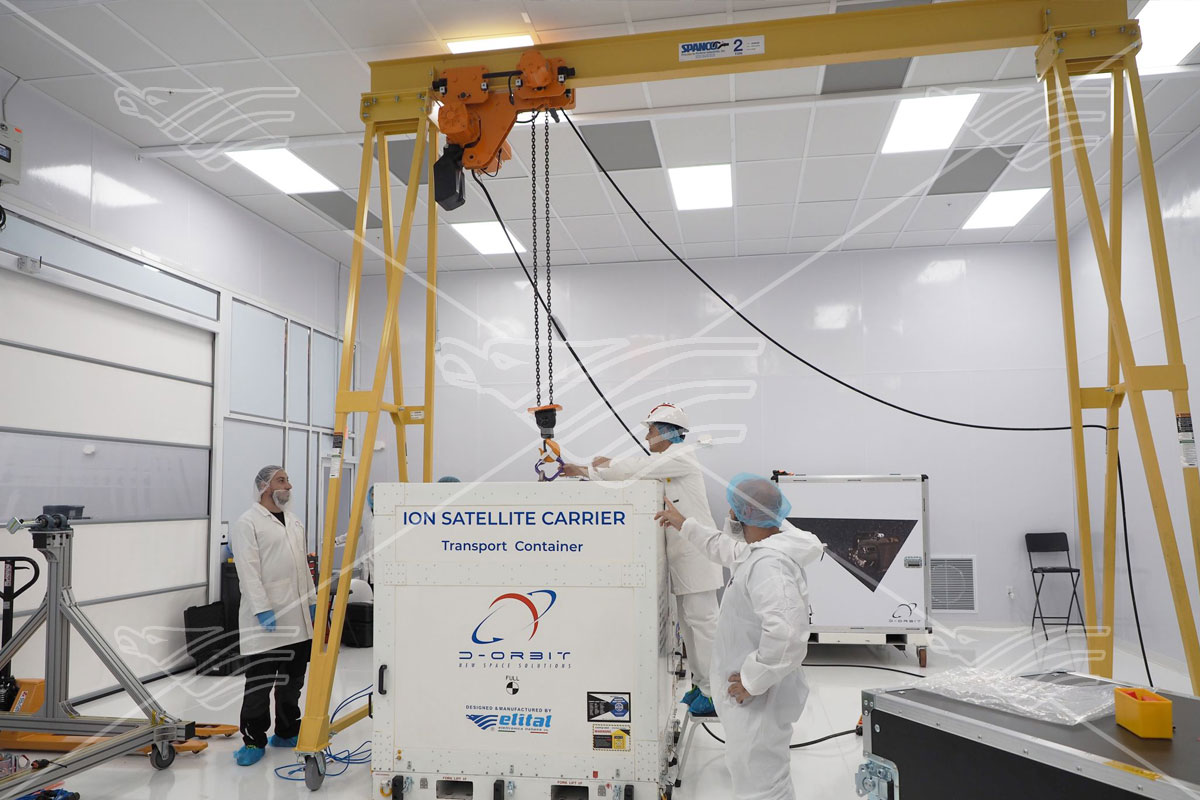

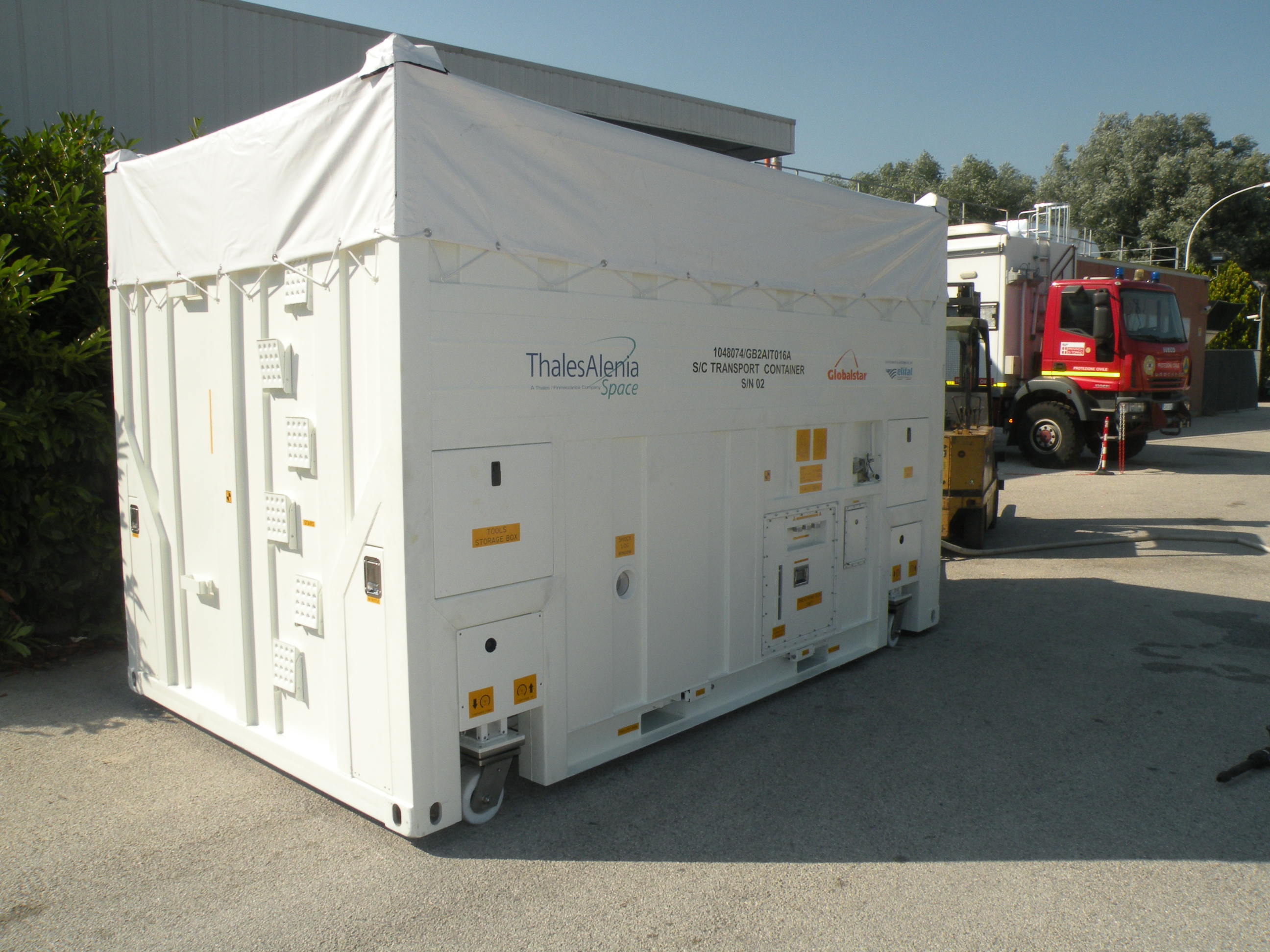

Transport Container Instruments & Satellite (STC)
MAIN FEATURES:
Remote Controlled,
Center Of Gravity Alignement tools.
Computer Aided Software available,
Balancing Beam,
Solid structure,
Roller guide,
Counterweights for balancing,
Ergonomic,
Handwheels in stainless steel,
Turn Counters on the handwheels,
No Lubricant construction,
Screw Jacks in Stainless Steel,
Graduate scale,
ATEX Compliant,
Elital is one of European manufacturer of Satellite Transport Containers.
The technology proposed is at the State of the Art.
CLEANILESS FEATURES:
ISO8: Class 100.000 (for flight hardware)
ISO5: Class 100 (for optical modules)/li>
ISO7 HC: Planetary Protection (DHMR) compliant for Space Science Missions
MAIN FEATURES:
High Precision Flight Hardware Interfaces
Dumper systems,
Military temperature range -40°C/+55°C,
Inspection Windows,
Air conditioning (redundant as option),
High Performance Insulation,
15/25mbar compliant,
Breathing System,
Purging Piping,
Nitrogen Plant on board,
Helium compliant for Half Life test for Propulsion Modules leak tests,
Molecolar Filter System,
Hatch Valve,
Hydraulic Braking System (option),
Pivoting Wheels -40°C compliant,
Stock Pile,
Rain Proof,
Tarpaulin,
Painting mil compliant
Air Cargo compliant
Maritime transportation compliant
Train or Truck compliant
Designed and manufactured with Elital qualified subsystems
Transport Container ISO 5 Optical Equipment

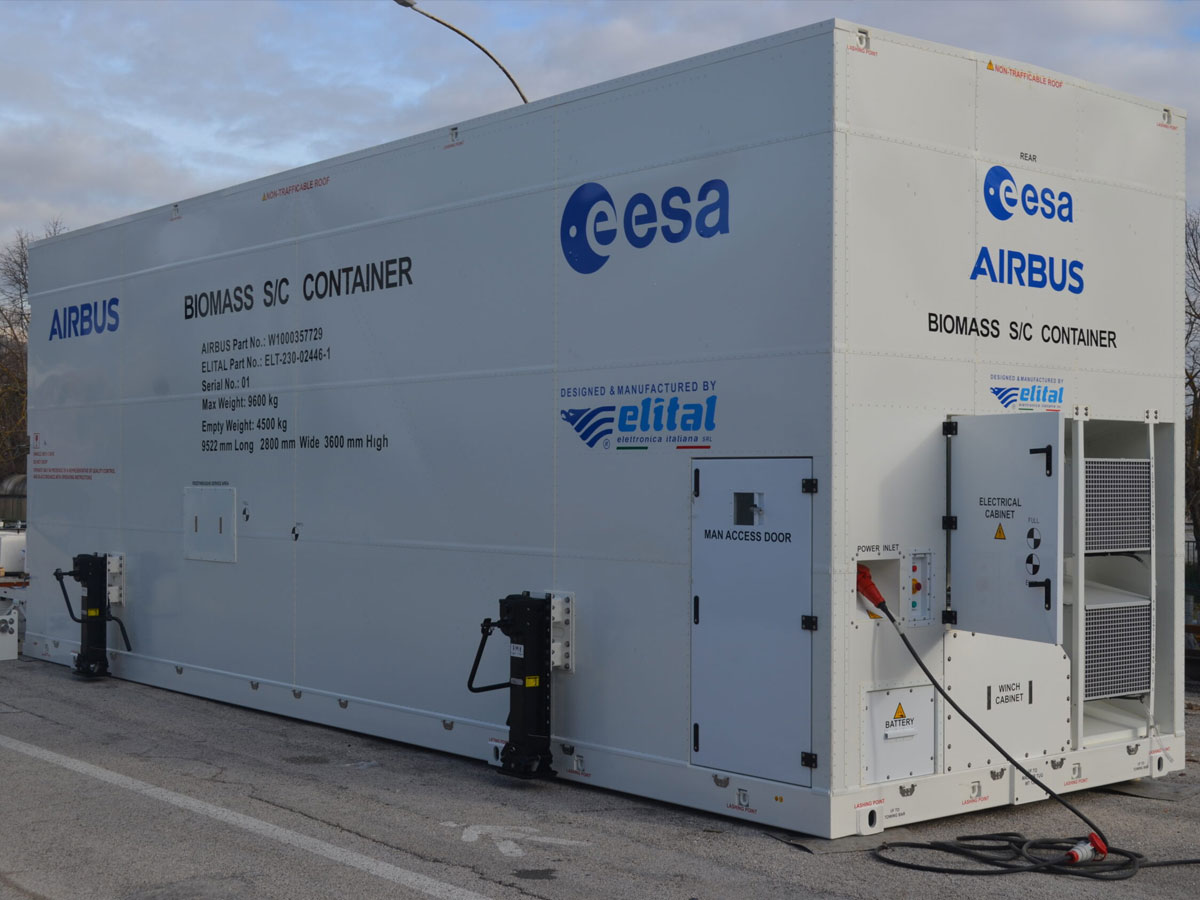

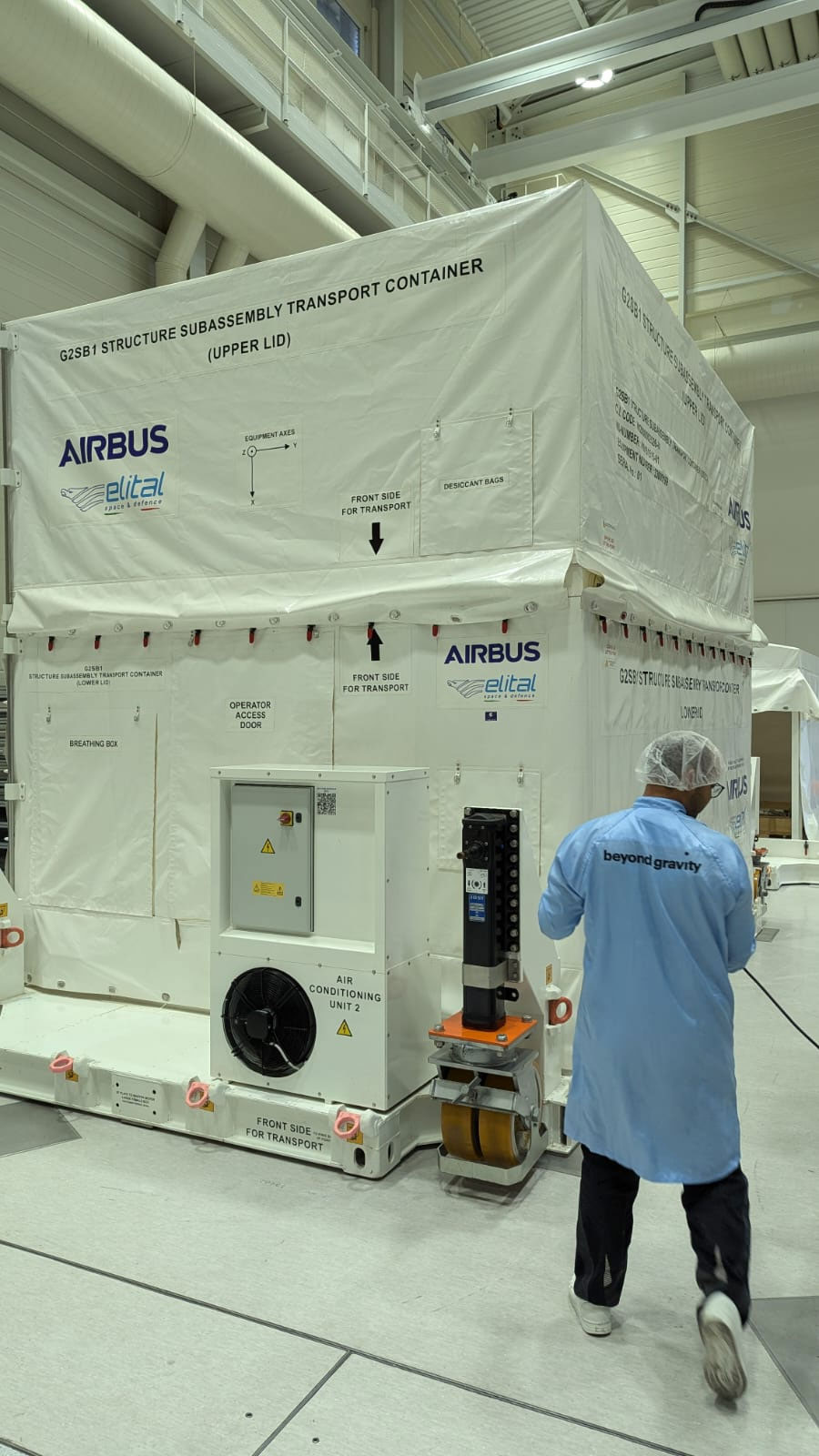

Platform Transport Container
MAIN FEATURES:
External envelope ISO 8 compliant,
Inner container ISO 5 compliant,
High Precision Flight Hardware Interfaces,
Dumper systems,
Military temperature range -40°C/+55°C,
Inspection Windows,
Air conditioning (redundant as option),
High Performance Insulation,
Air Tightness 25mbar 24hr compliant,
Breathing System,
Flushing Piping,
Nitrogen Plant on board,
One Way Safety Valve ISO5 Compliant (ELT-230-01794-0),
Pivoting Wheels ISO5 compliant,
Stock Pile,
Rain Proof,
Tarpaulin,
Air Cargo compliant,
Train or Truck compliant,

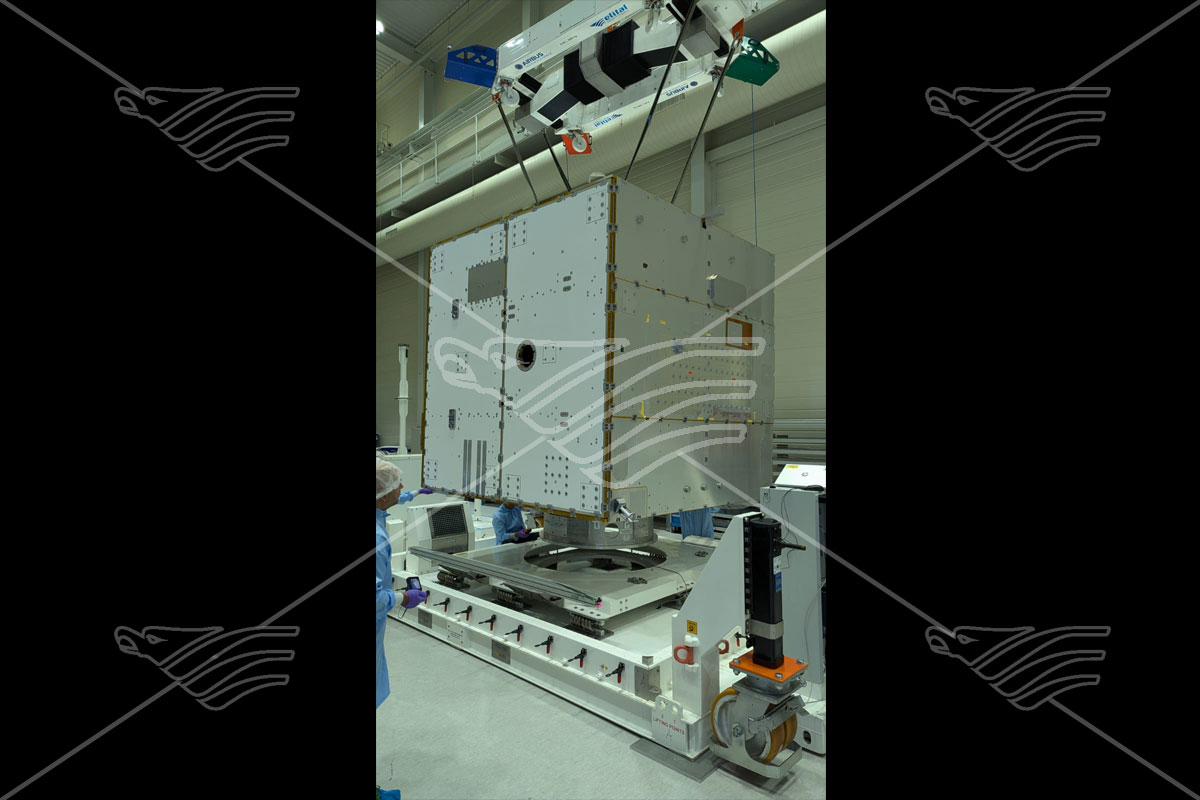

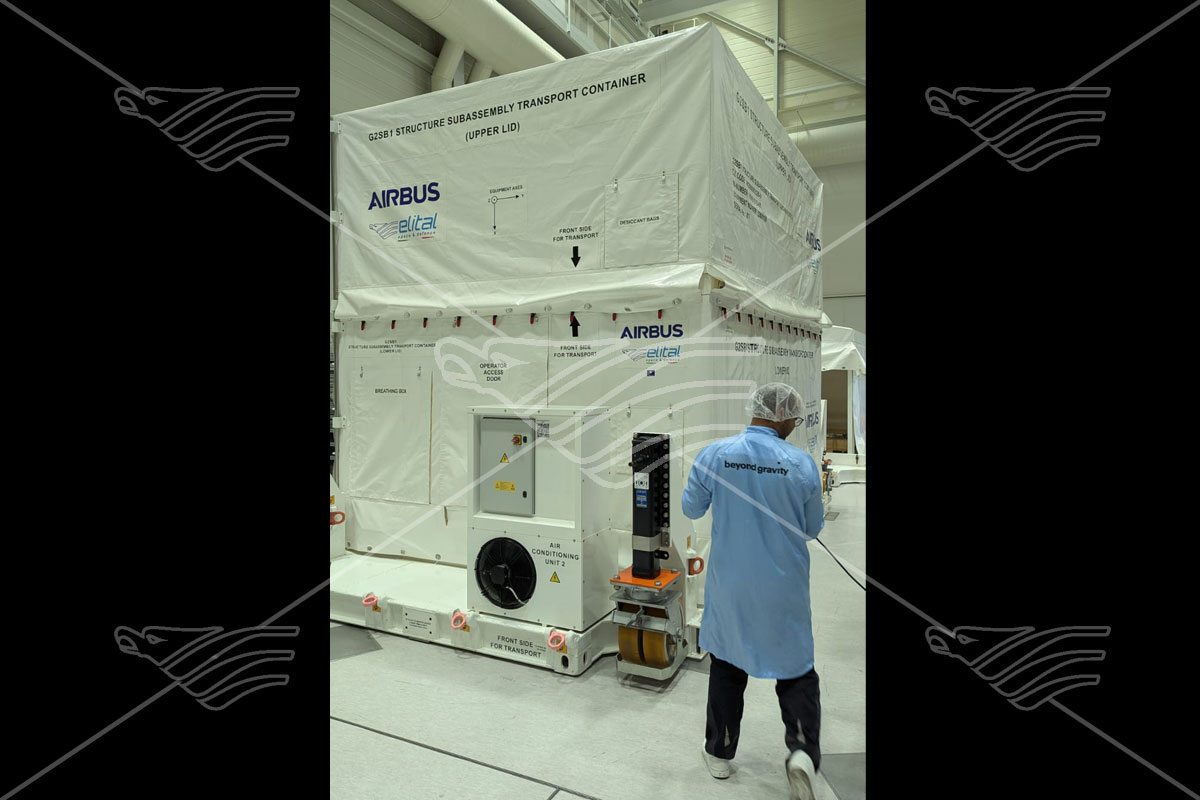

MAIN FEATURES:
Launch Vehicle Adapter interface,
L-shape interface,
Dimensions: up to L3800 x H4300 x L10500 (mm),
Weight: up to 20.000Kg.
SWL: up to 5.000Kg.
Opens: Lid Type Container or Garage Type
Cleanliness: ISO-8
Transportation with special cargo bays,
Payloads/Instruments Transport Containers.

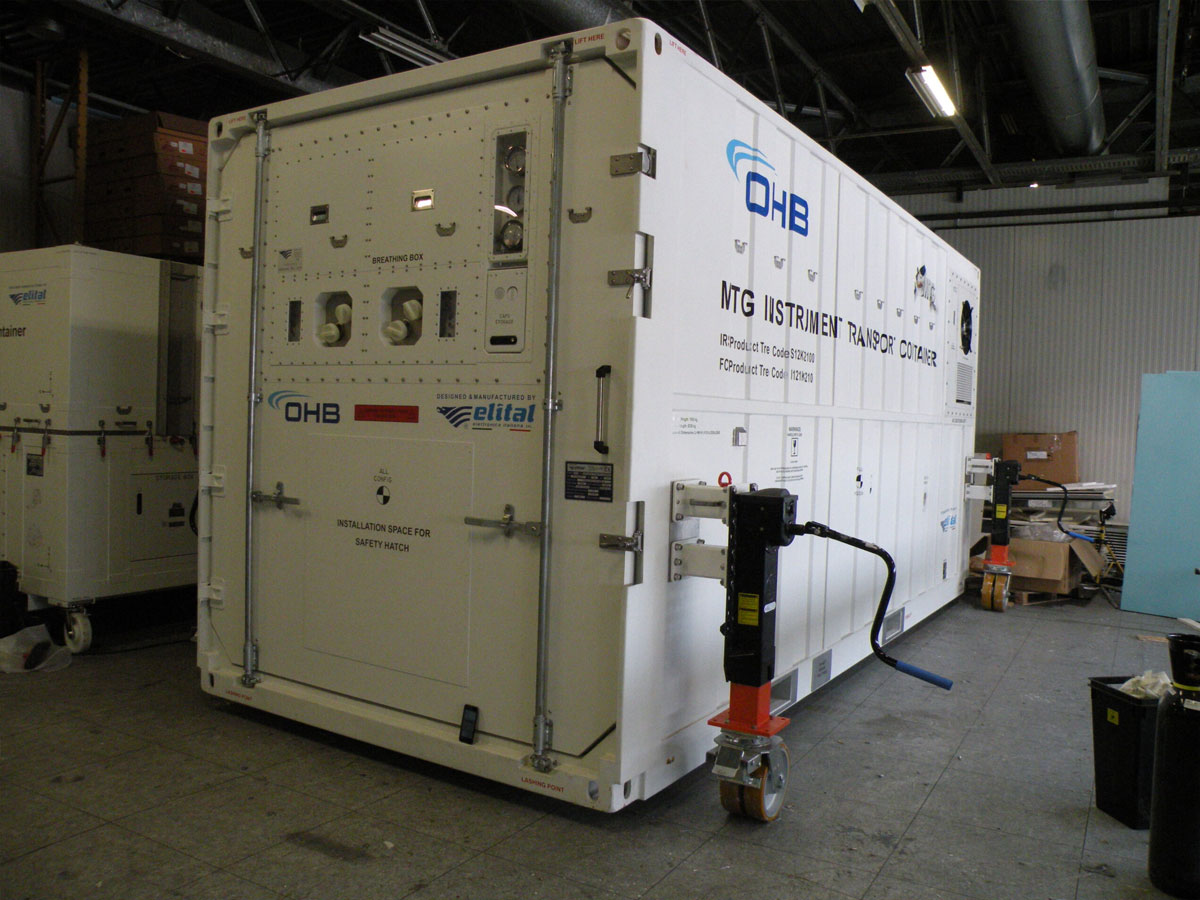

Instrument Transport Containers

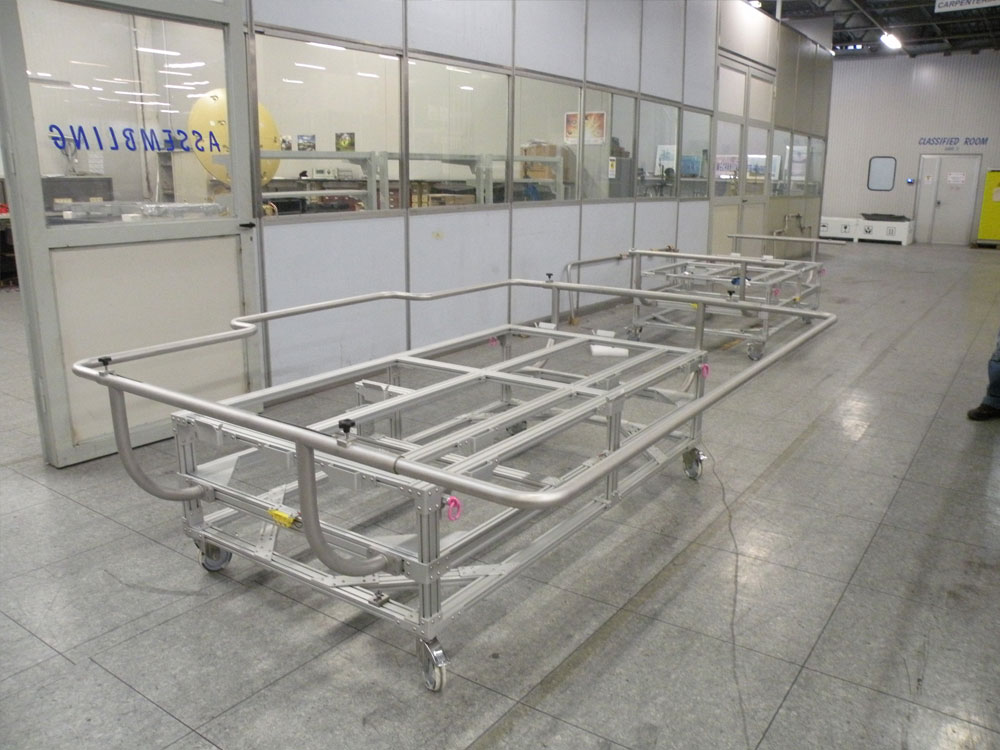

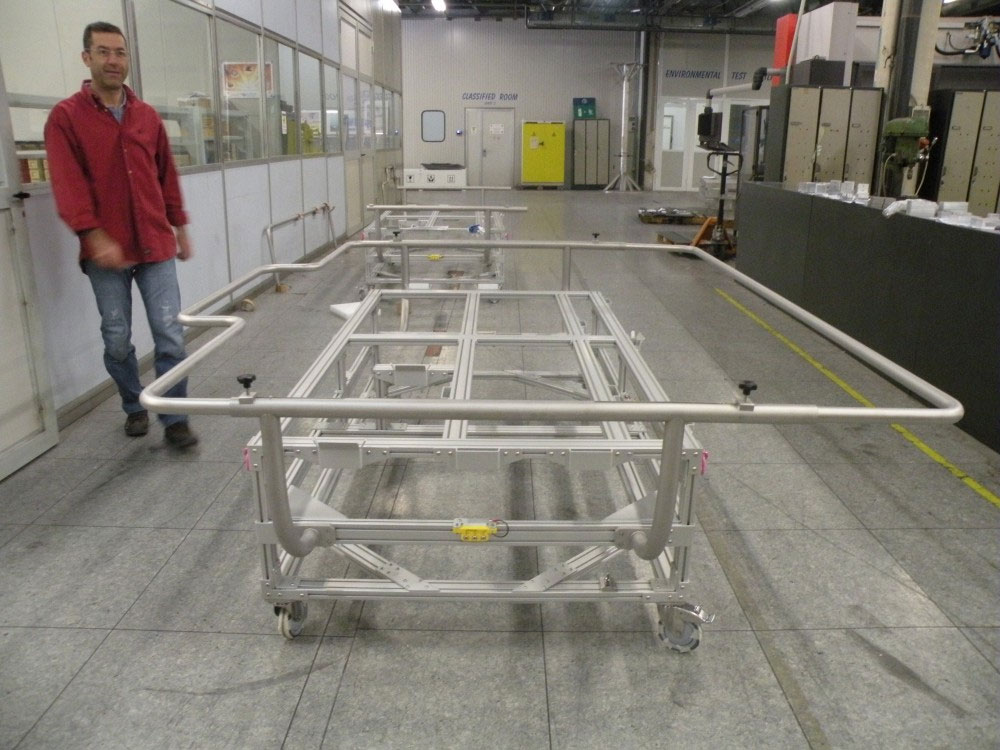

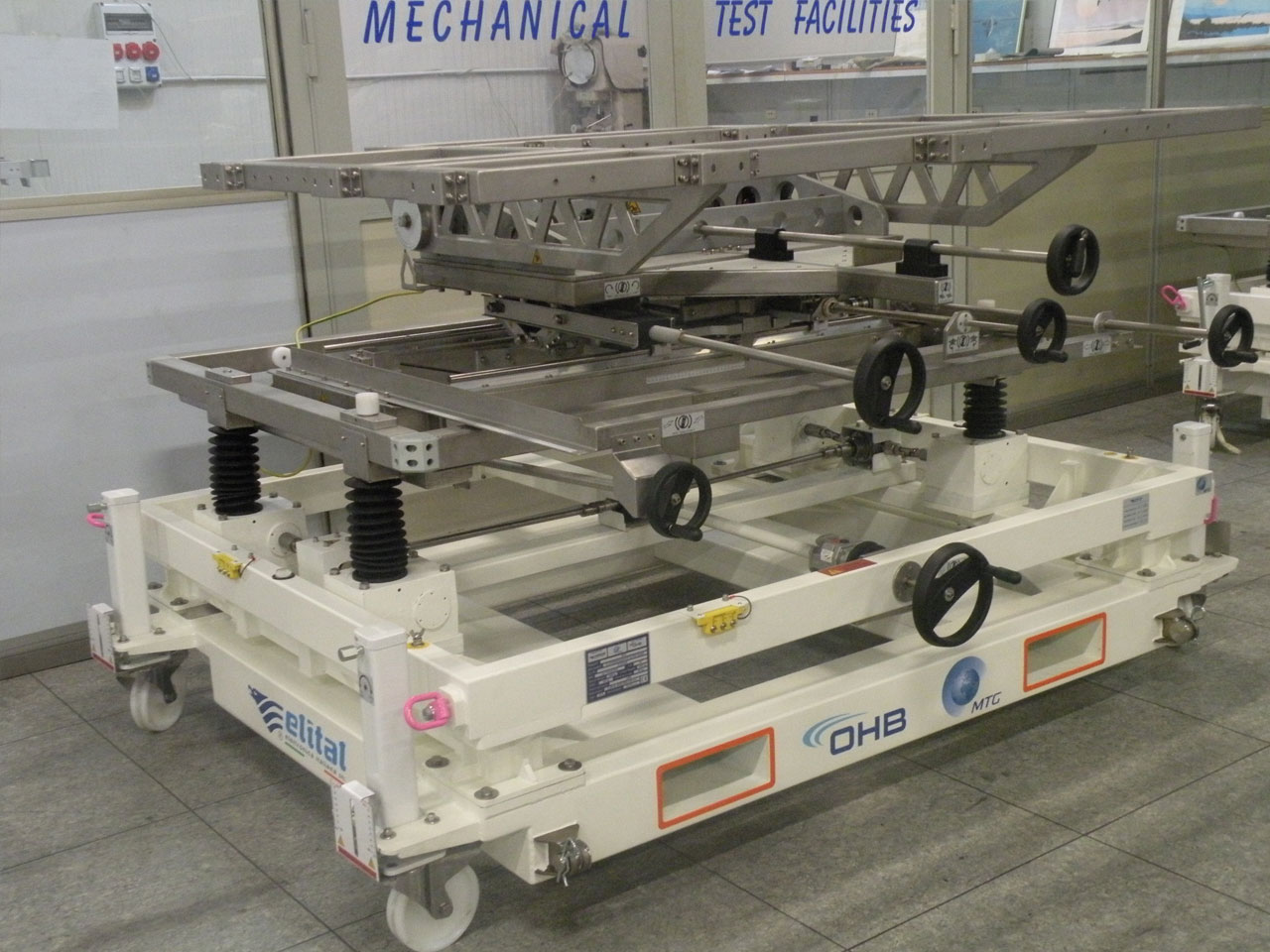

Handling and Integration stands for satellite panels and structures.
6DoF stands
CLEANILESS LEVELS:
ISO8: Class 100.000 (for flight hardware)
ISO5: Class 100 (for optical modules)
ISO7 HC: Planetary Protection (DHMR) compliant for Space Science Missions
MAIN FEATURES:
High Precision Flight Hardware Interfaces
Dumper systems,
Military temperature range -40°C/+55°C,
Inspection Windows,
Air conditioning (redundant as option),
High Performance Insulation,
15/25mbar compliant,
Breathing System,
Purging Piping,
Nitrogen Plant on board,
Helium compliant for Half Life test for Propulsion Modules leak tests,
Molecolar Filter System,
Hatch Valve,
Hydraulic Braking System (option),
Pivoting Wheels -40°C compliant,
Stock Pile,
Rain Proof,
Tarpaulin,
Painting mil compliant
Air Cargo compliant
Maritime transportation compliant
Train or Truck compliant

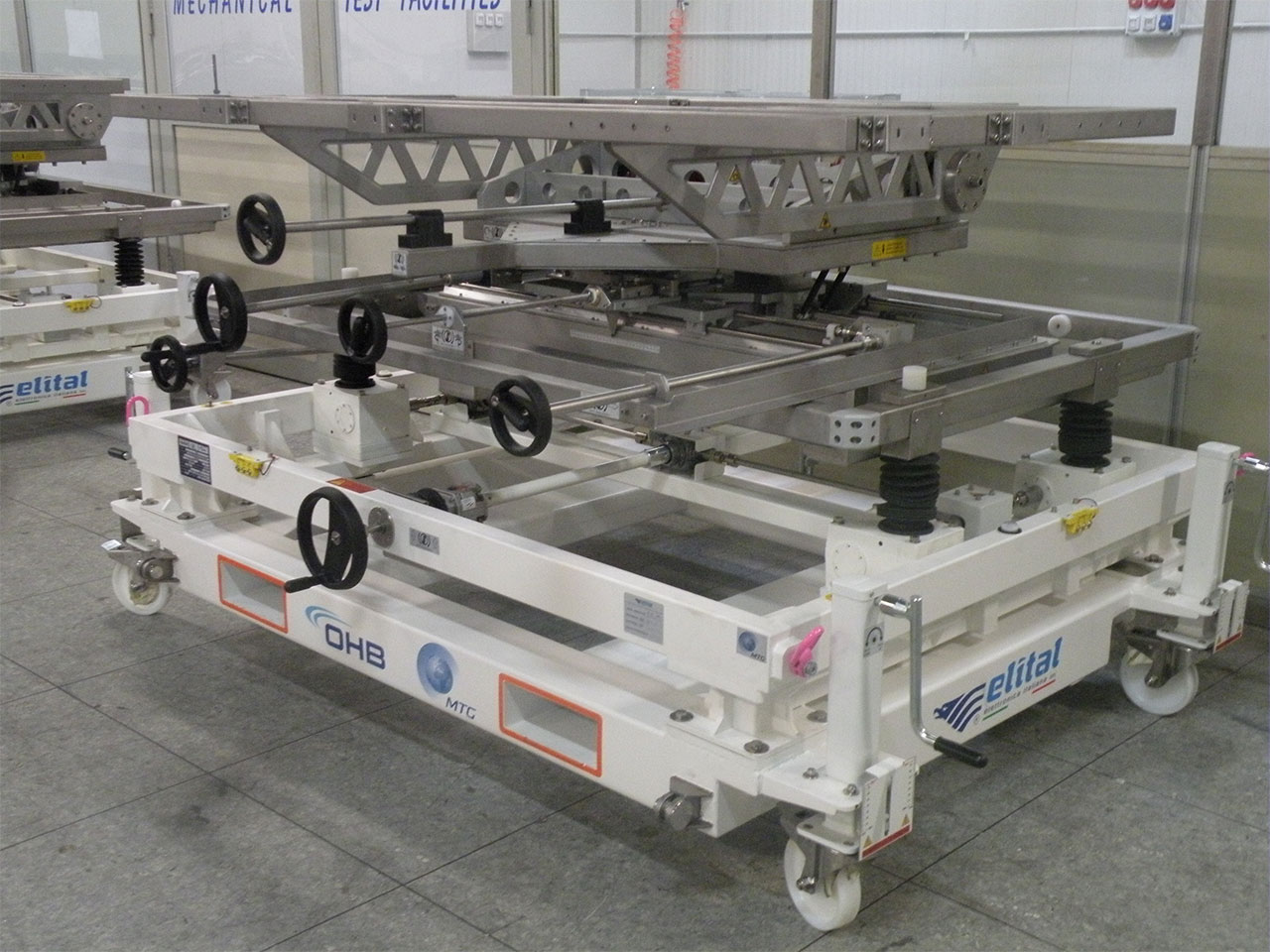

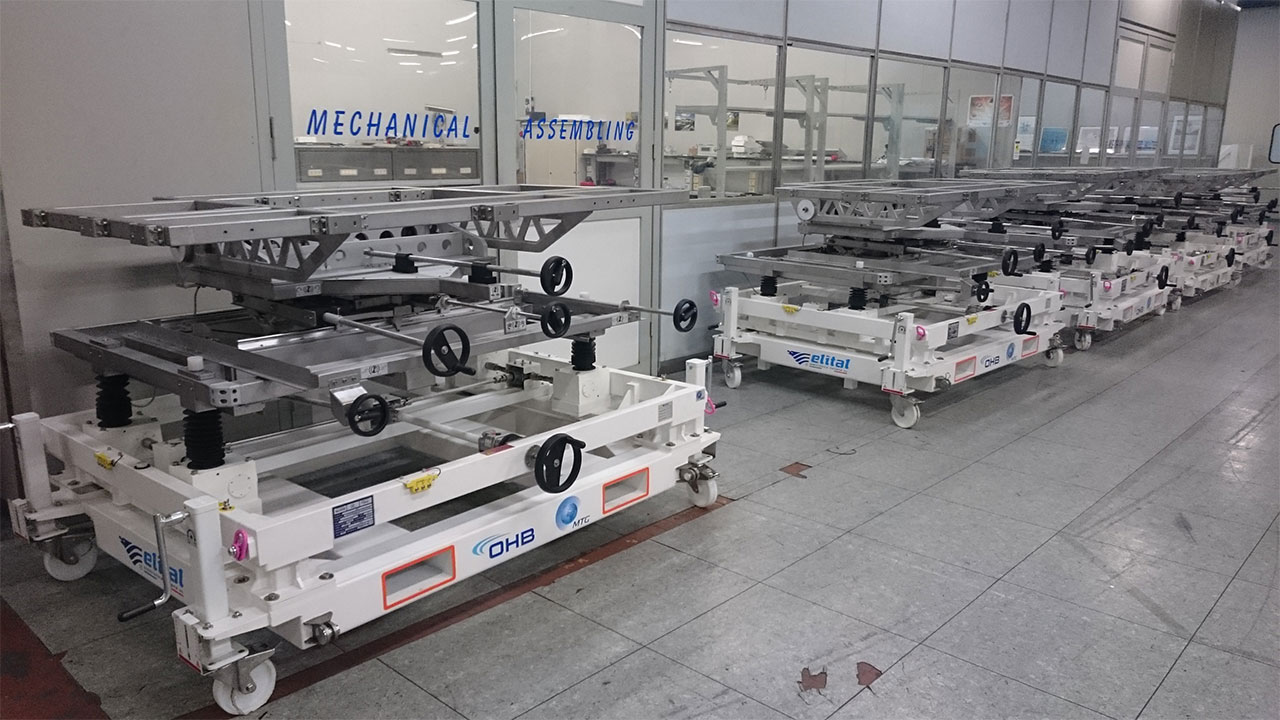

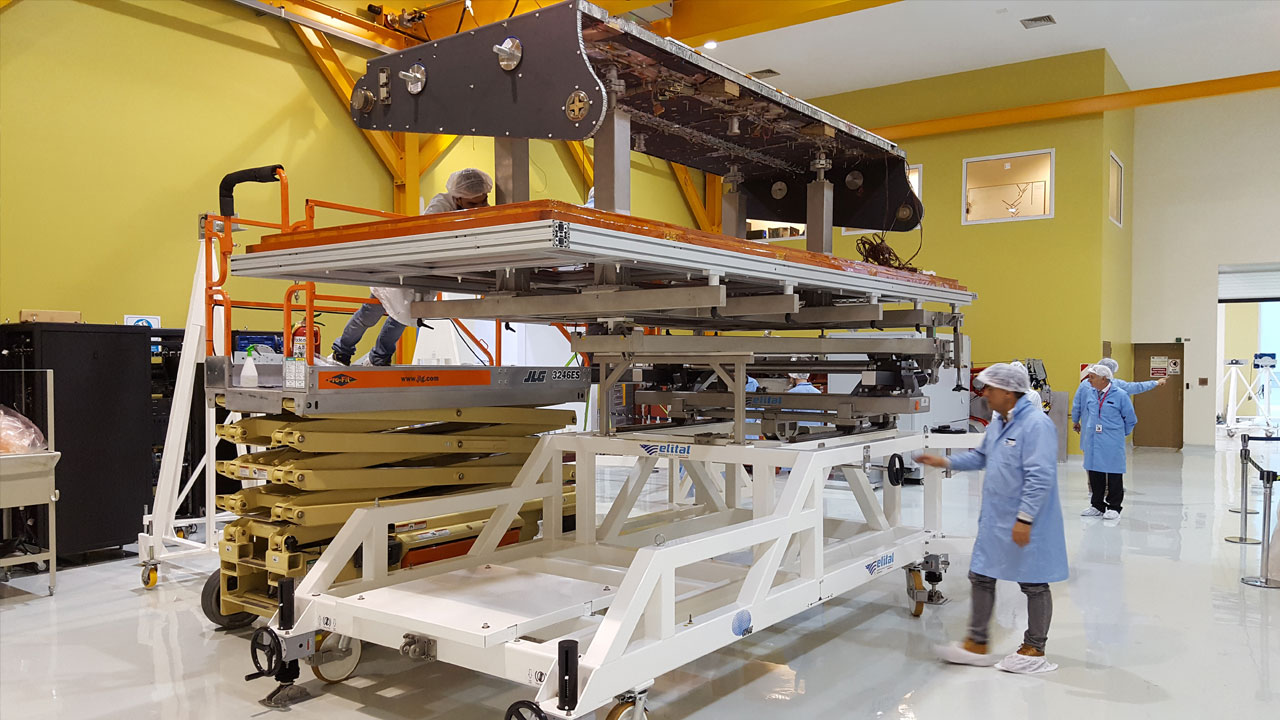

This M-GSE is suitable to align on 6DoF and mount the satellite frames. The systems are available manual driving and with motorisation
MAIN FEATURES:
Clean Room Compliant,
Mechanical Interface with other MGSE,
High Stability,
Pivoting Wheels for handling,
Stabilisation by Screw Jacks,

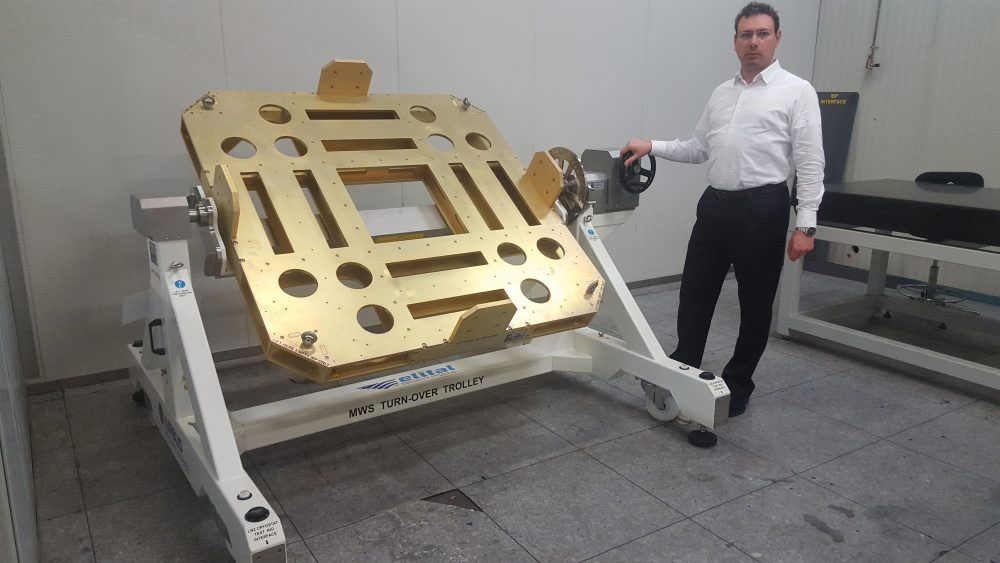

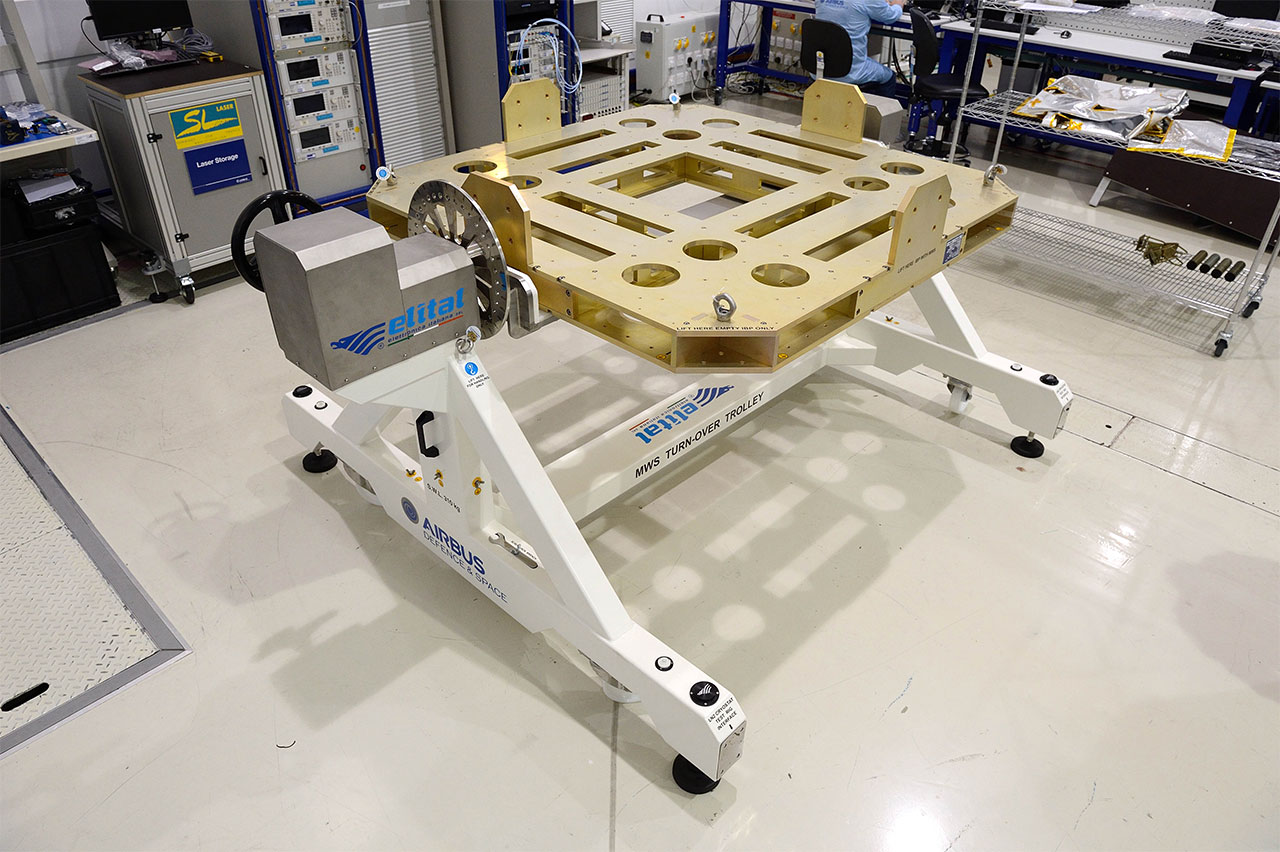

Turnover Trolley
Vibration Adapters

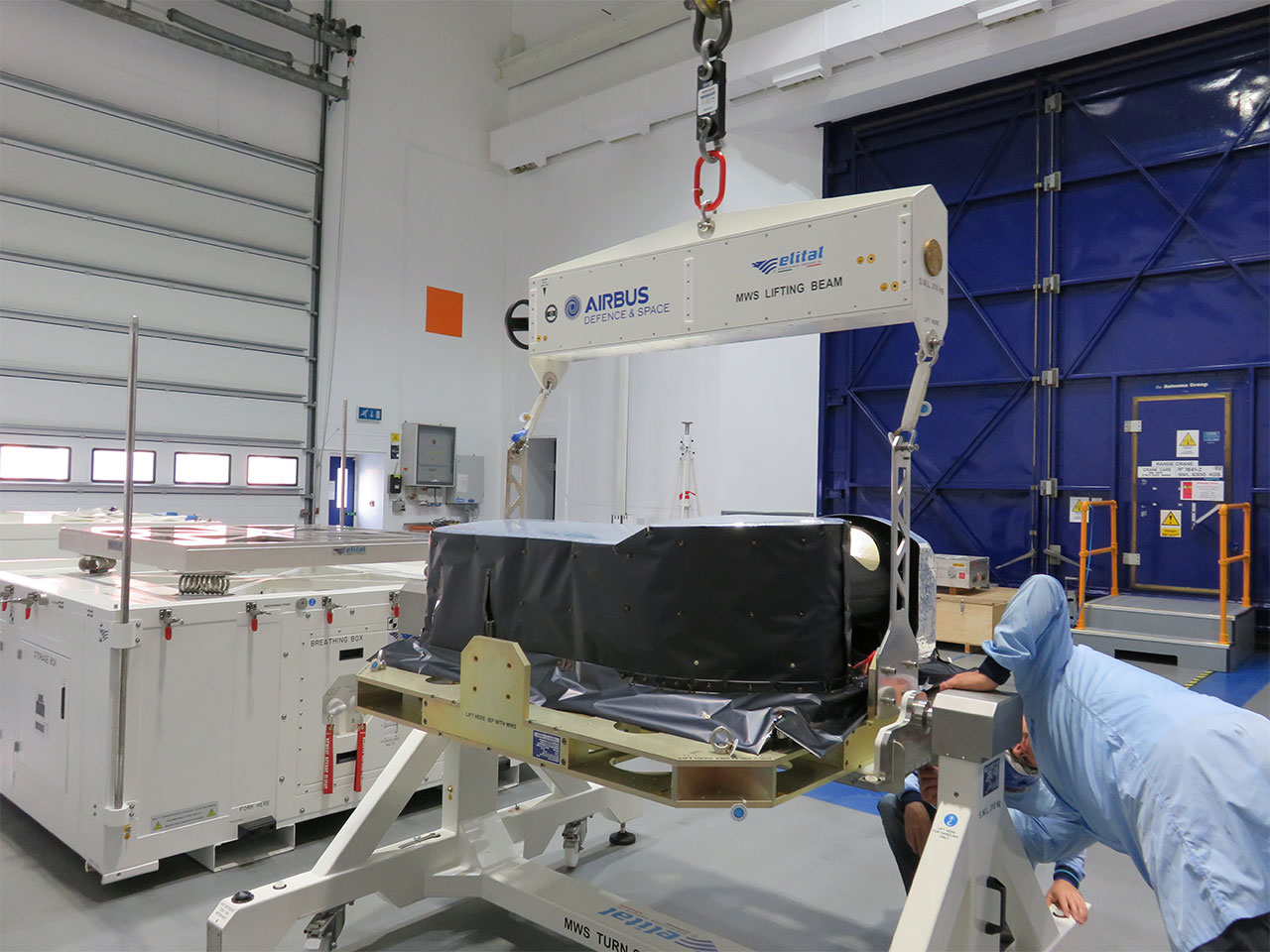

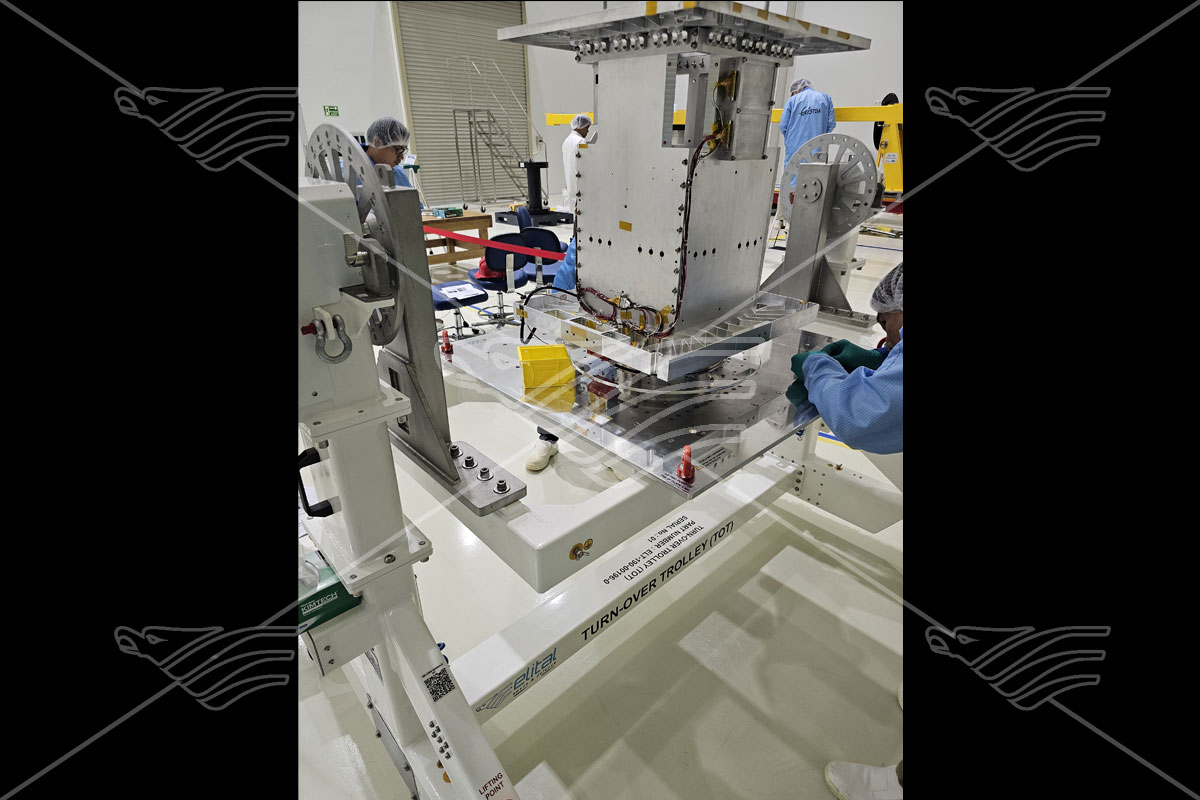

The Turnover Trolley is suitable for the integration of the space instruments. The Lower part is stable and allow the technician to work around the instrument. The baseplate can be rotated by the hand wheel and can be locked. A dumping system is foreseen on the shaft in order to achieve a smooth rotation.
MAIN FEATURES:
High Accuracy movements,
Position Brake,
Dumping System,
Pivoting Wheels,
High Stiffness structure

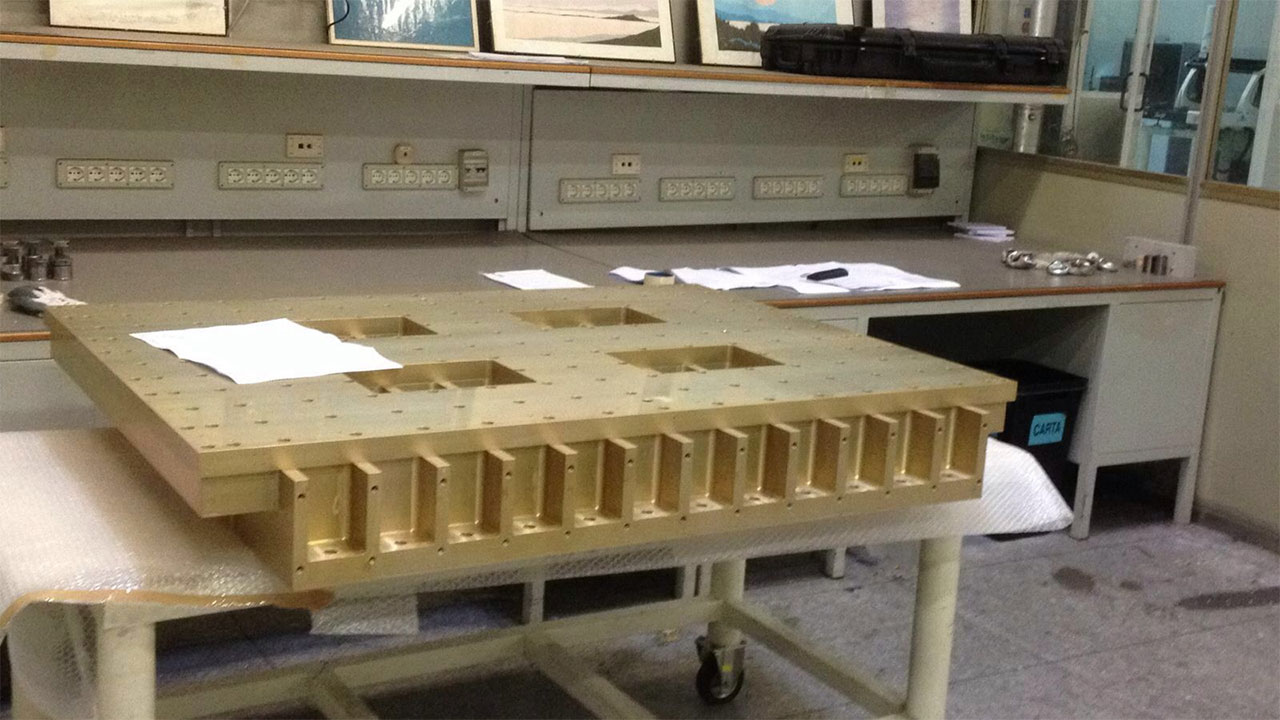

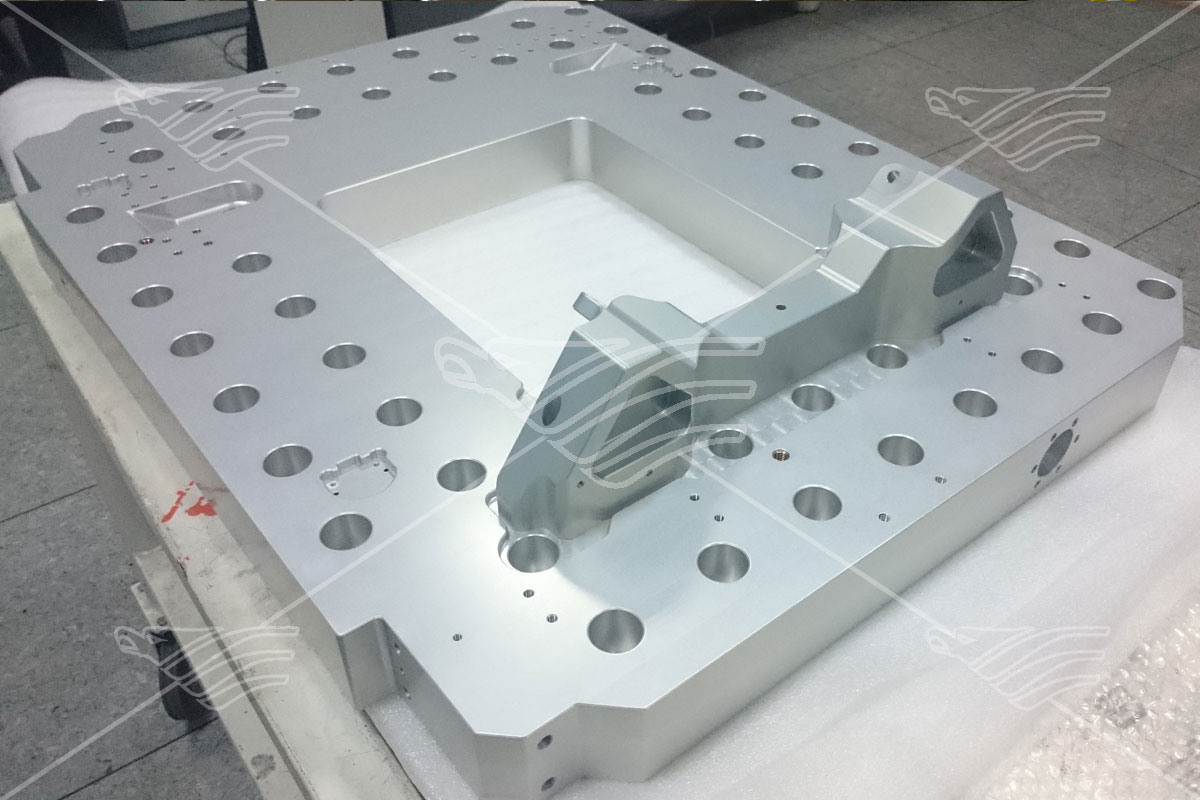

Vibration Adapters to mount the space items on the test shakers facility. The system is designed and mathematical simulated.
MAIN FEATURES:
Aluminium Alloy frame,
High Stiffness structure,
Grounding points,
Dedicated interfaces for flight hardware

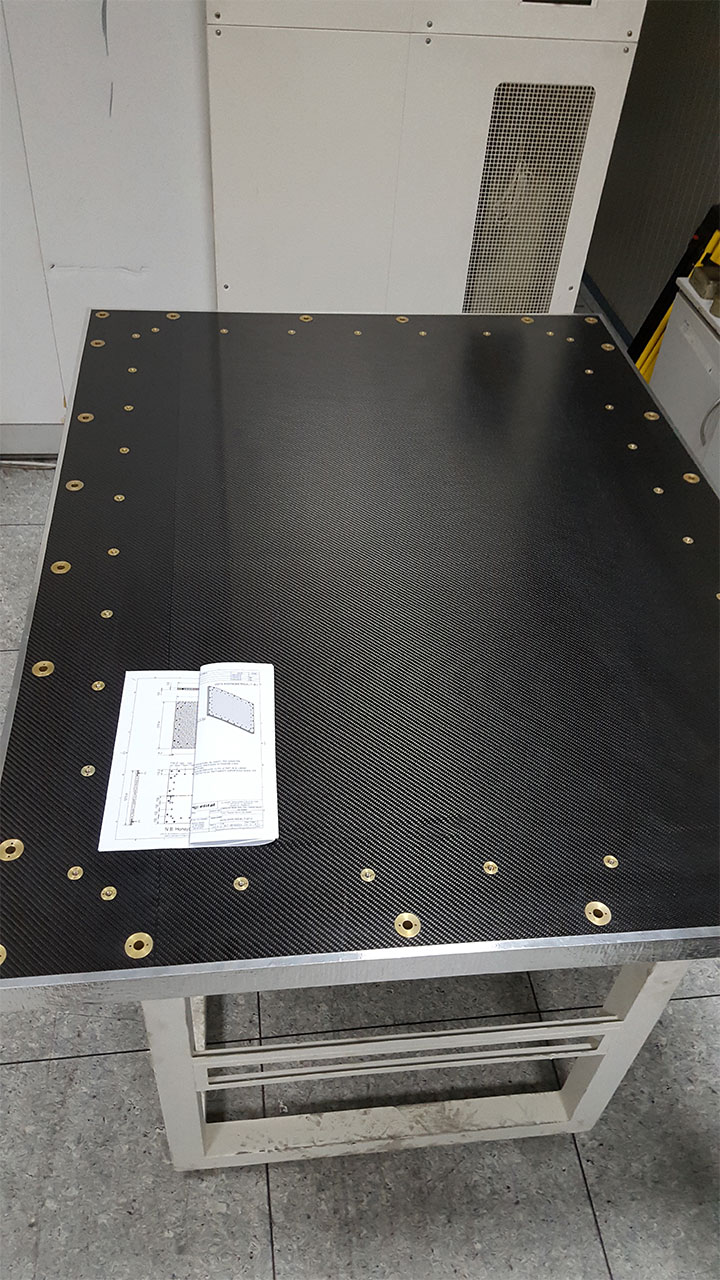

Carbon Fiber frames, for environmental test of Flight Hardware in Thermal Vacuum chambers.

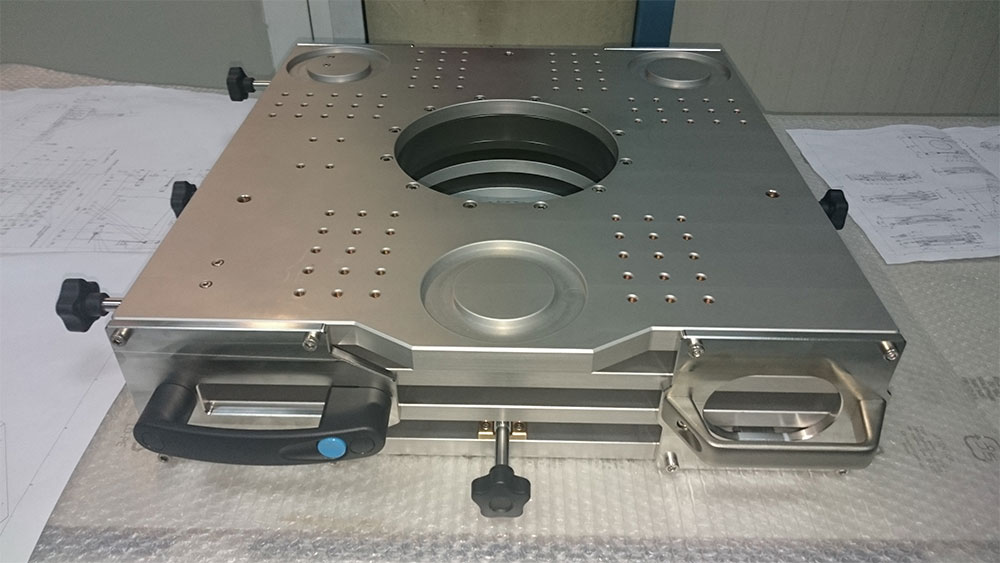

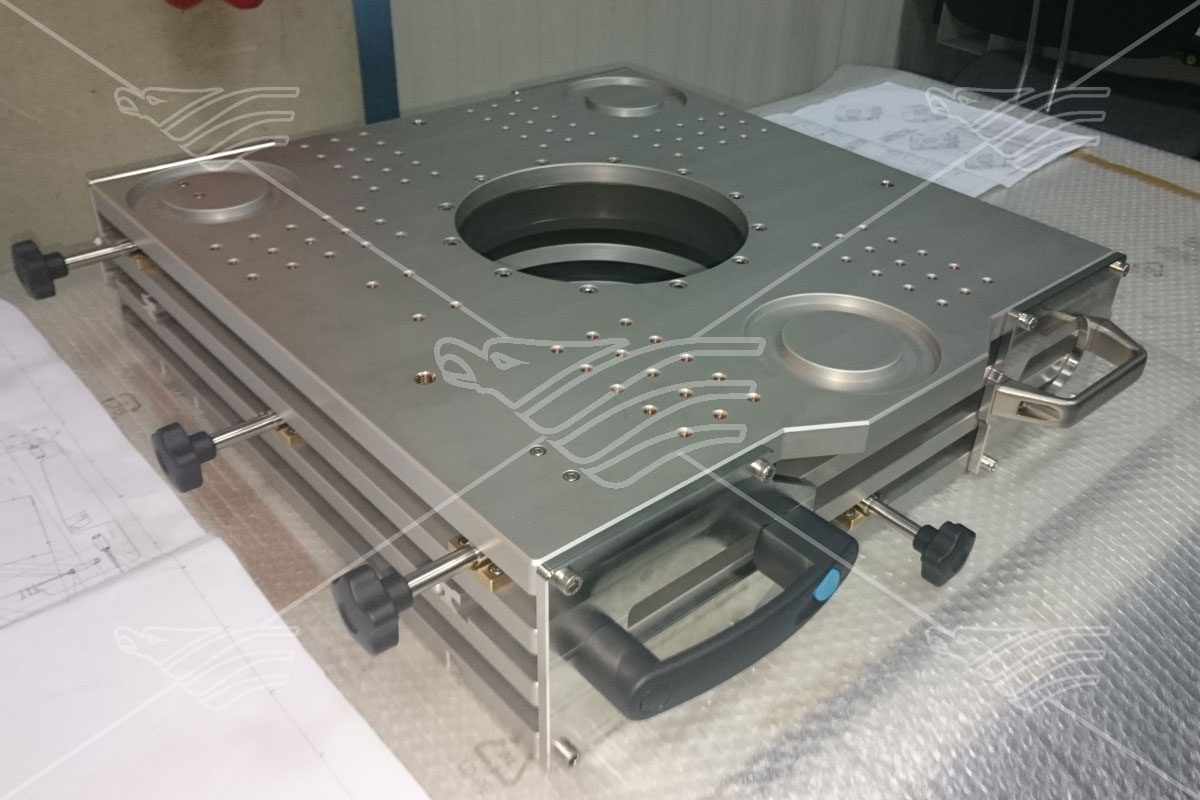

OGSE – 4DoF Micro Positioner
SAR Antenna Testing.
Thermal & Anechoic Chamber MGSE
MAIN FEATURES:
Vacum Compliant structure,
High Accuracy Interfaces,
Out-gasing performances certified,
High Vacuum compliant,
Very Low temperature compliant,

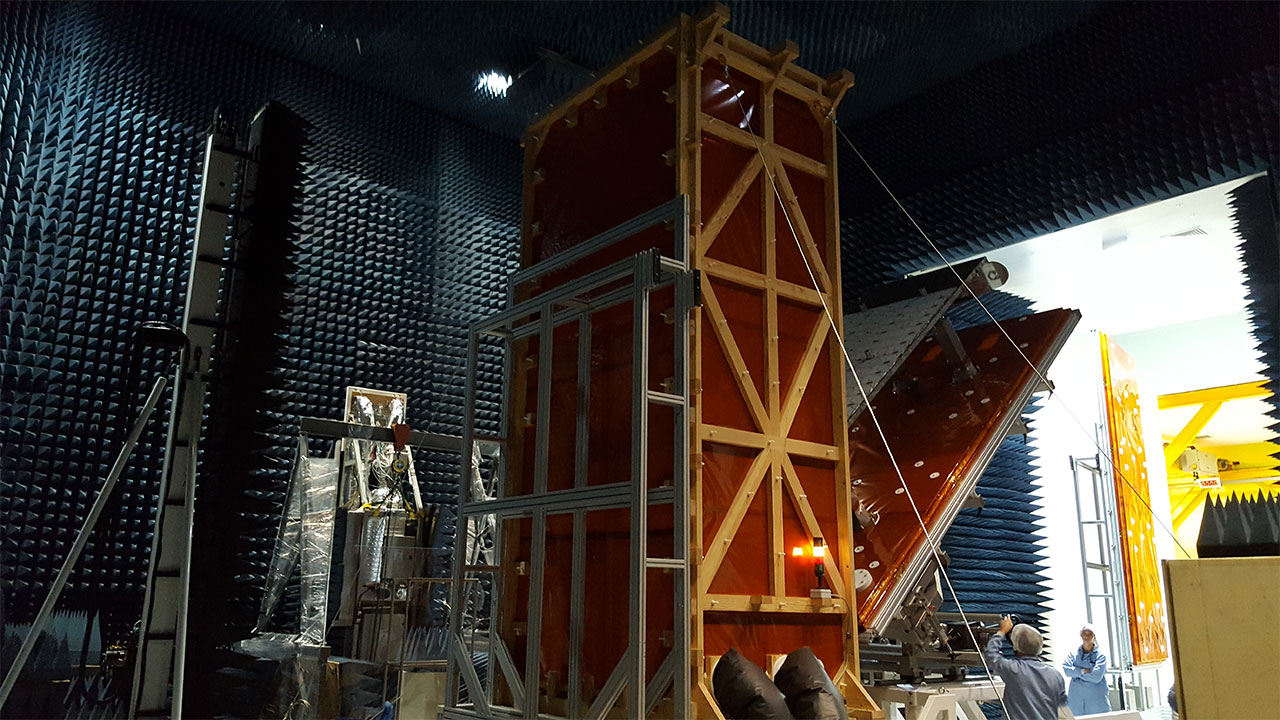

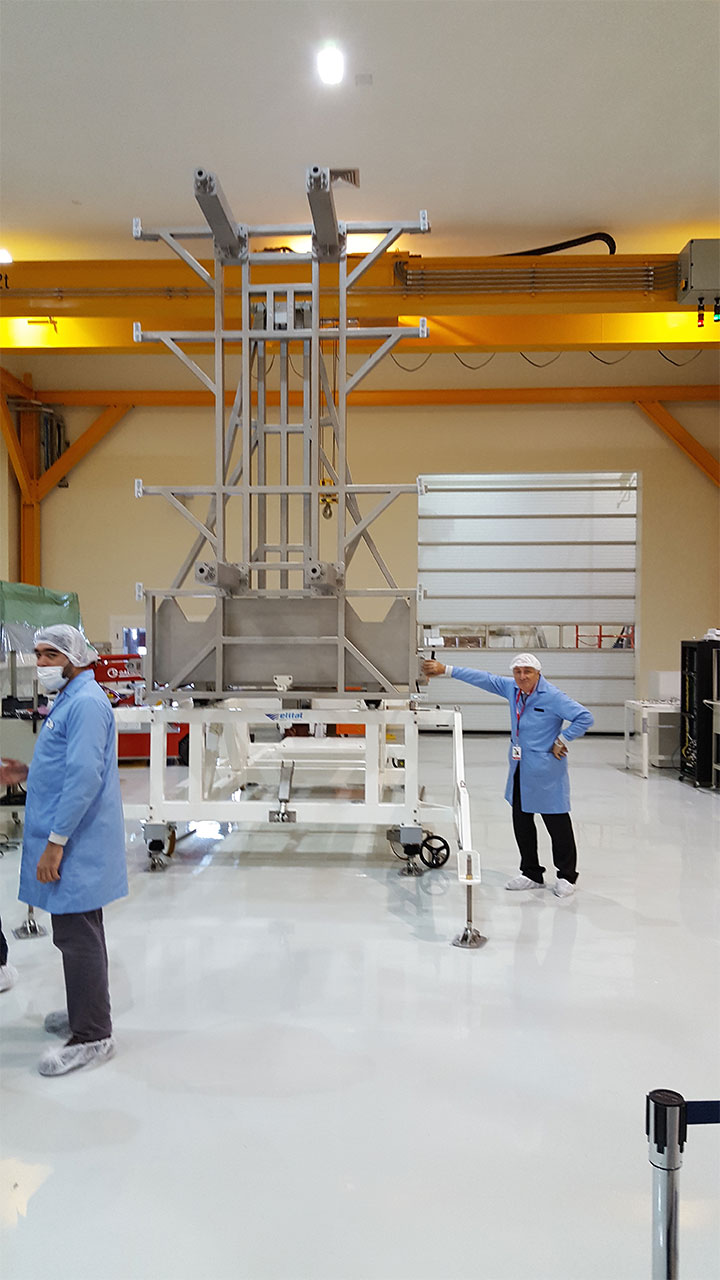

This MGSE is specifically designed to perform the Near Filed measuring of the SAR antenna panels, in Anechoic Chamber, during the Thermal Test. A dedicated Thermal Chamber is used in Anechoic Chamber.
The MGSE is radio frequency transparent
The Mechanical stability is studied to compensate the thermal behaviour of the materials.

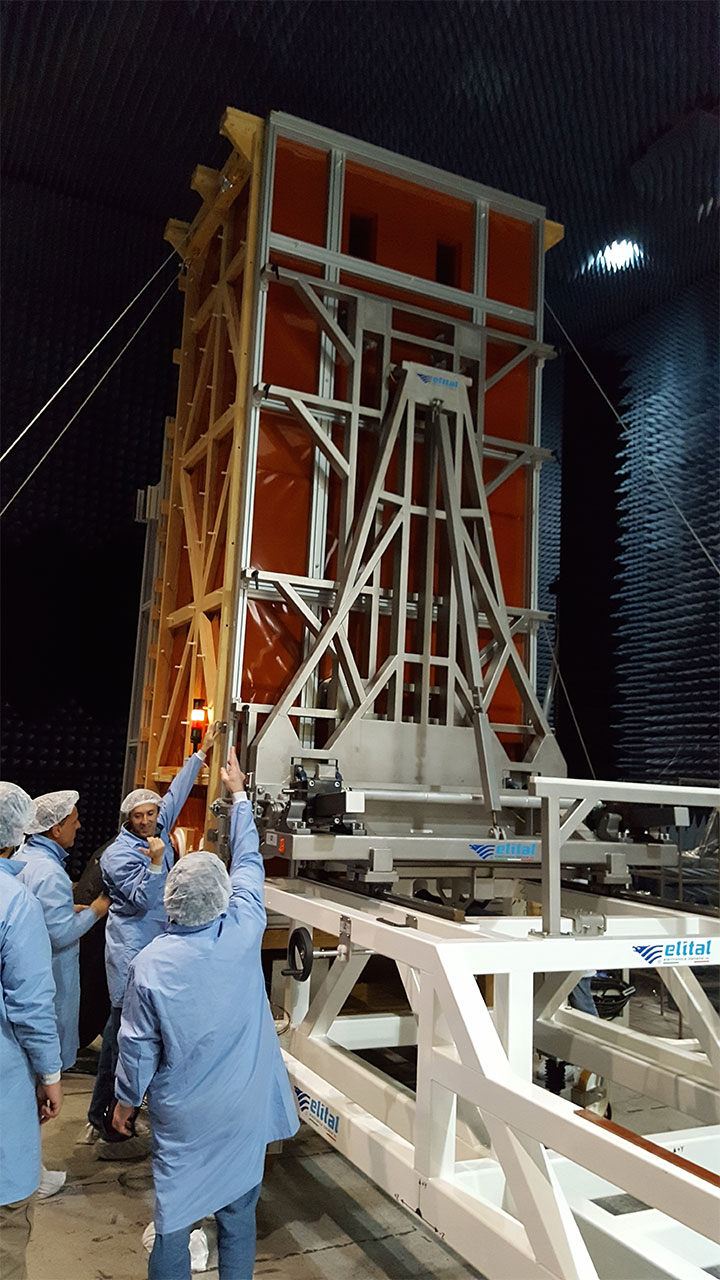

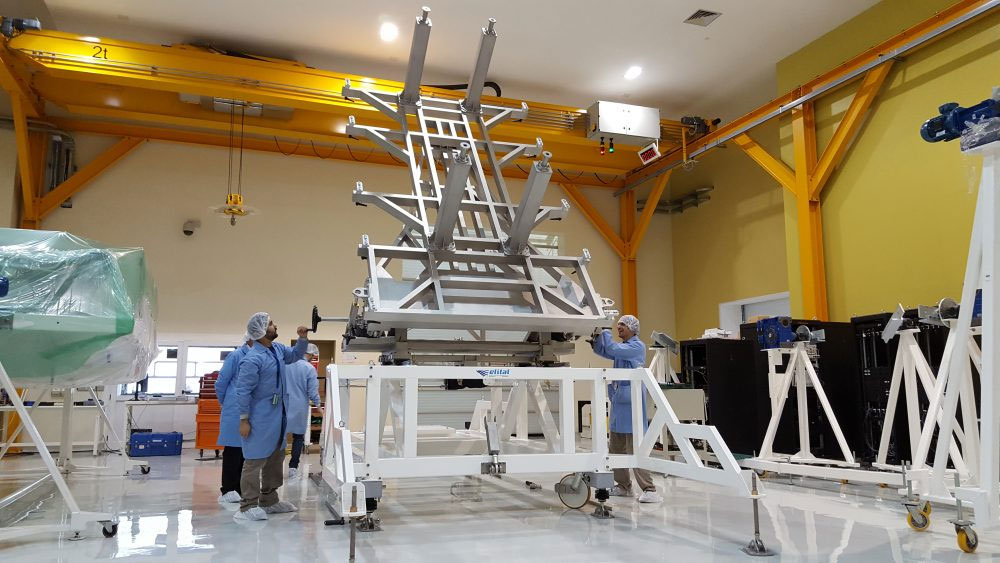

The machine showed below, delivered in Argentina for SaoCom mission, has:
6000 mm height,
5 Degrees of Freedom,
0,005° of accuracy,
Working Temperature -70 to +70 °C,
Fully integrated with Thermal Chamber by ATT (Angelantoni Company),
Handling Trolley Equipments

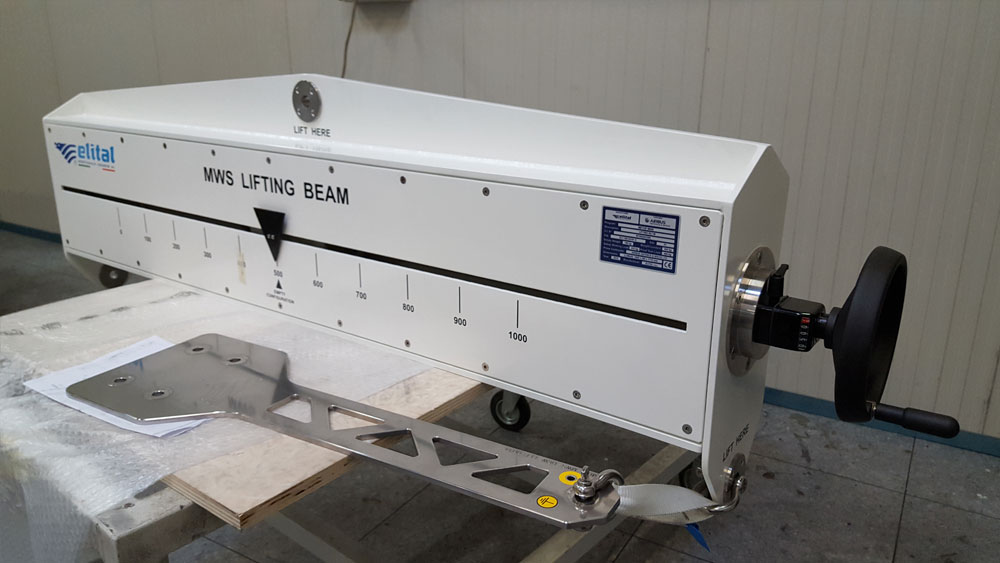

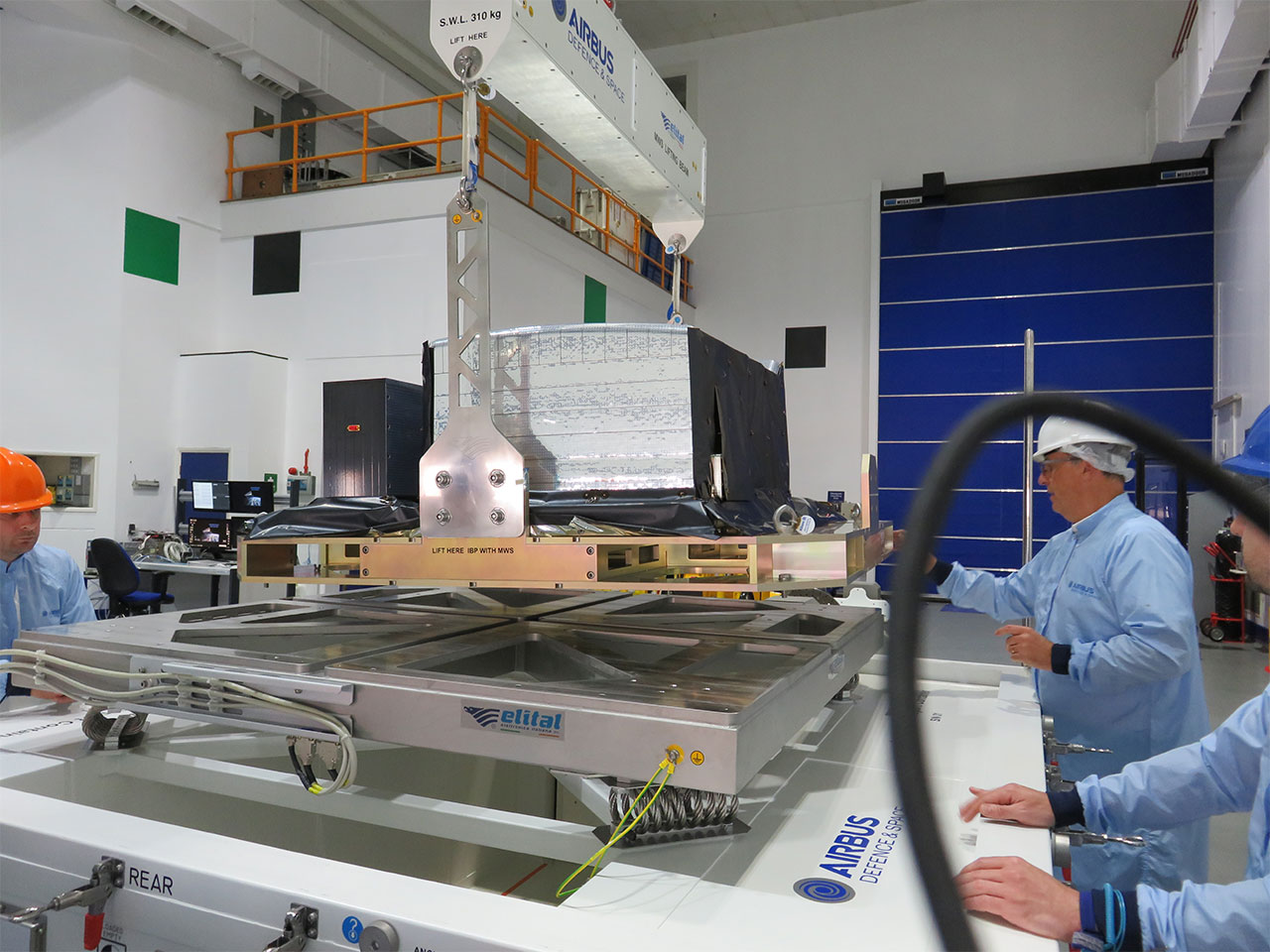

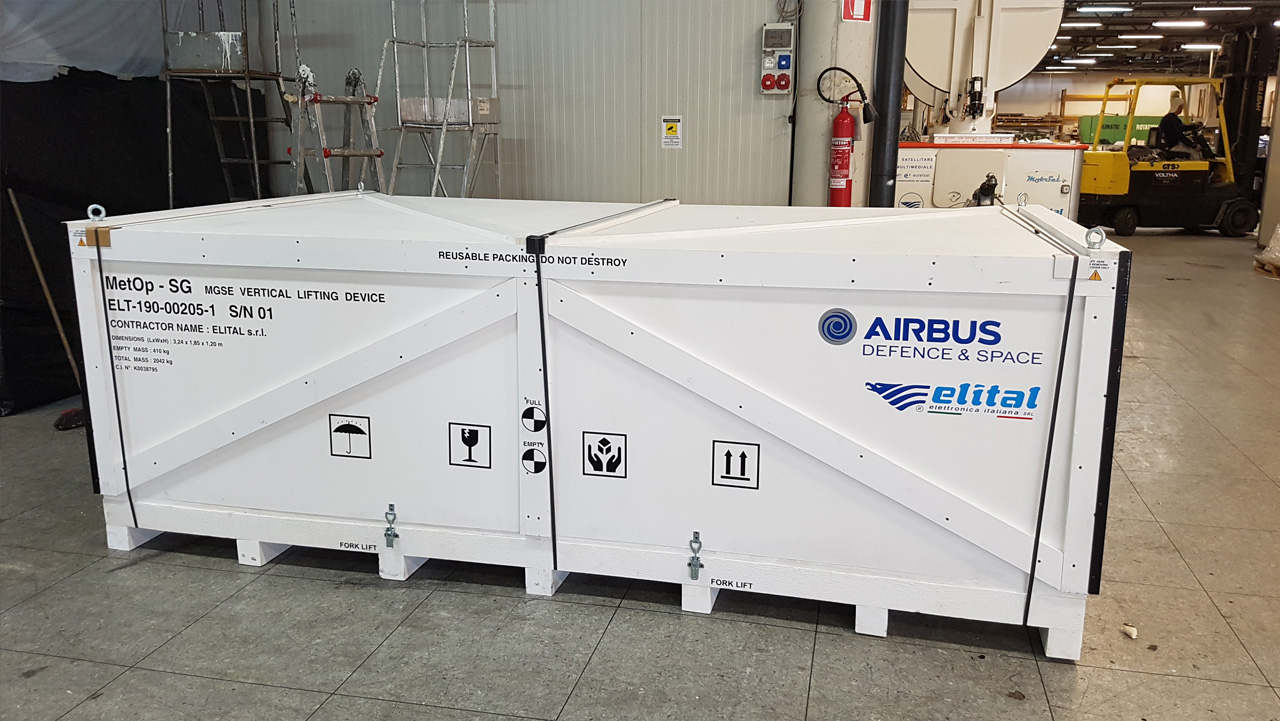

VLD products are suitable for instrument and satellite lifting.
Lifting Devices (LD)
MATERIALS:
Stainless Steel,
Aluminium
MAIN FEATURES:
Solid structure,
Roller guide,
Counterweights for balancing,
Ergonomic usability,
Handwheels in stainless steel,
Turn Counters on the handwheels,
No Lubricant construction,
Screw Jacks in Stainless Steel,
Graduate scale,
ATEX Compliant,
LD Frame
Wire Ropes
Storage and Transport Wood Case
Stainless Steel Turnbuckles
Ancillaries
MAIN FEATURES:
Solid structure,
Roller guide,
Counterweights for balancing,
Ergonomic usability,
Handwheels in stainless steel,
Turn Counters on the handwheels,
No Lubricant construction,
Screw Jacks in Stainless Steel,
Graduate scale,
ATEX Compliant,
LD Frame
Wire Ropes
Storage and Transport Wood Case
Stainless Steel Turnbuckles
Ancillaries
